PVC Shoes Machine

Looking for a top-tier rotary PVC shoe making machine? We supply high-efficiency 12-24 station injection lines with factory-direct B2B pricing. Contact our engineering team today for a free layout and equipment quotation!

High-Performance PVC Shoe Making Machine Solutions

Within the competitive footwear manufacturing sector, producing cost-effective, durable, and highly marketable products requires a perfect balance of reliable automation and material compatibility. As a leading manufacturing equipment supplier, we design and supply advanced PVC footwear injection systems that seamlessly convert raw PVC compound granules into retail-ready sandals, slides, rain boots, and athletic outsoles.

By integrating multi-station rotary tables with precision thermal control, our machinery ensures consistent high-volume output with minimal labor overhead. Whether you are running a high-capacity contract manufacturing plant or upgrading a regional footwear facility, our certified production lines are built to optimize your material yield and maximize your floor's overall equipment effectiveness (OEE).

What is a PVC Injection Shoes Machine?

A PVC shoes injection machine is a specialized hydraulic system engineered to melt granular or pelleted PVC shoe material under precise thermal conditions and inject it directly into custom-machined footwear molds. This industrial system is optimized to mass-produce complete single-color or multi-color footwear, as well as separate high-wear components:

• Lightweight, comfortable air-blown slippers and flexible summer sandals.

• Fashionable "jelly shoes" and waterproof protective boots.

• High-durability direct injection process (DIP) outsoles for sports and canvas footwear.

How the PVC Injection Shoes Machine Works

Our rotary PVC machines utilize a highly efficient, continuous cycle to melt, inject, and cool thermoplastic compounds with minimal manual touchpoints:

1. Material Feeding & Melting: Raw PVC compound granules are loaded into a heated barrel. A high-torque screw melts, mixes, and homogenizes the material under closed-loop temperature profiles.

2. Mold Clamping: Custom-machined aluminum or steel molds are locked into the machine’s rotary station clamping units.

3. Rotary Alignment: The machine preheats the injection nozzles and molds. A heavy-duty rotary table automatically indexes the target mold station directly into position with the injection unit.

4. Injection Parameter Tuning: Operators use the centralized touchscreen HMI to set precise injection speeds, holding pressures, and the volumetric dosing required for each shoe size.

5. Direct Injection: The hydraulic injector forces the molten PVC material into the closed mold cavity. A powerful clamping system maintains complete pressure to prevent flashing.

6. Cooling & Curing: Rapid air- or water-cooling lines quickly lower the mold temperature, solidifying the thermoplastic.

7. De-Molding & Output: The mold station rotates to the open position, the clamping lock releases, and the operator easily de-molds the finished, resilient shoe.

Available Models & Station Selection Guide

Selecting the right machine configuration relies on your target product structure, color requirements, and planned daily output volumes. We offer highly versatile rotary configurations:

Precision PVC Shoe Mold Selection

Our engineering team designs and manufactures high-tolerance aluminum and steel molds engineered to match our rotary injection systems perfectly:

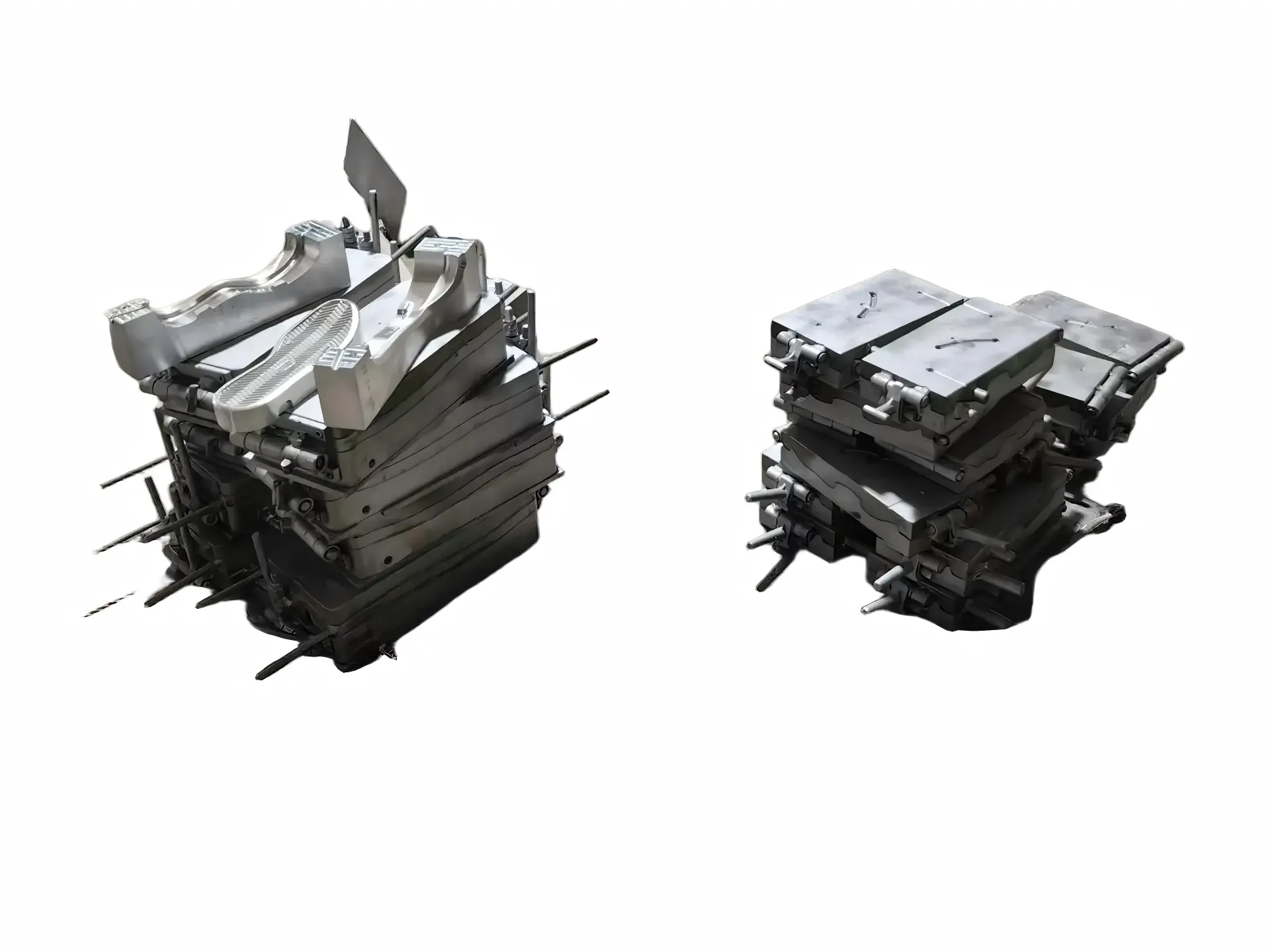

• Direct Injection Footwear (DIP): Precision PVC Direct Injection Footwear Mould plates engineered for canvas and casual shoes, ensuring tight bonds between canvas uppers and PVC outsoles.

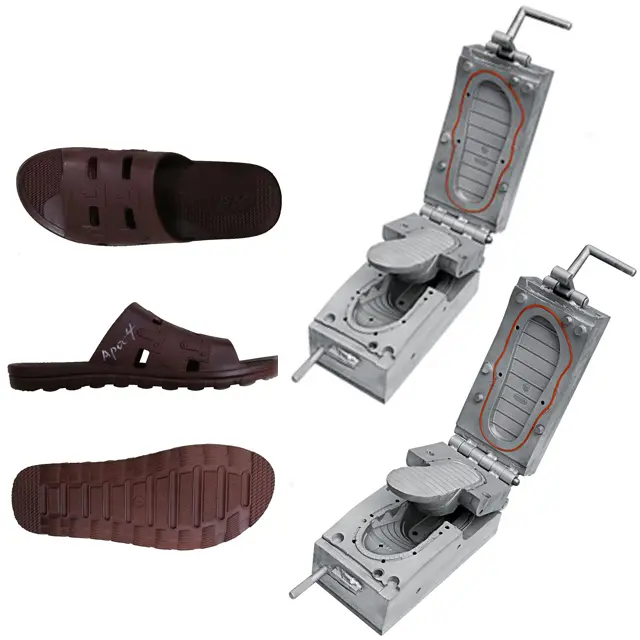

• Single & Multi-Color Clogs/Slippers: Durable PVC Double Color PVC Shoe Mold tooling with integrated air-release pins for clean, cosmetic surface finishes.

• Custom Lasts & Components: High-wearing PVC DIP Shoe Mold sets customized to specific regional foot shapes and orthopedic standard profiles.

Manufacturing Materials Compatibility Matrix

Performance Validation Note: Bayeux calibrates injection screw shear speeds and mold gas venting using customer-specified PVC granules and plasticizers to prevent material carbonization before shipment.

Machine Configurations & Technical Specifications

Parameter	Engineering Specification
Typical Production Capacity	150 - 220 pairs/hour (Multi-station rotary tables)
Suitable Product Types	PVC Rainboots, Solid Soles, Jelly Shoes, Strap Sandals
Mold Stations	12 / 16 / 20 / 24 Stations (Rotary configurations)
Power & Energy Consumption	Installed: ≈ 75 kW - 120 kW (Stable Running Power: ≈ 60 kW)
Control Infrastructure	Rotary Servo Table Control │ Multi-Station Injection Volume Calibration PLC

Raw Material & Validation Matrix

Typical Raw Materials	Pre-Shipment Performance Verification	Common Manufacturing Issues Prevented	Production & Manufacturing Benefits
• Polyvinyl Chloride (PVC) Granules (Rigid or flexible formulations) • Plasticizers (DOP / DINP / DOTP) (Flexibility and soft touch adjustment) • Thermal Stabilizers (Eco-friendly Ca-Zn or lead-free) • Foaming Additives (For soft, microcellular sole structures)	✔ Screw Plasticization Shear & Torque Profile (Verification of melt consistency) ✔ Rotary Table Indexing Precision (High-speed mechanical alignment testing) ✔ Injection Pressure Closed-loop Test (Dynamic pressure sensor logging) ✔ Mold Cooling Circuit Water Flow (Cooling efficiency and thermal balance check) ✔ 8-Hour Continuous Injection Test (Full-cycle simulation at max speed)	• Material Carbonization / Black Spots • Sink Marks / Surface Depressions • Flash or Overfilled Cavities • Uneven Dye / Color Swirls • Incomplete Demolding / Tearing	• Increase Daily Output High-speed rotary table design minimizes operator idle time and maximizes station duty cycles. • Reduce Material Waste Direct injection with optional zero-cold-runner configurations minimizes runner scrap. • Stable Shore Hardness Exact, closed-loop injection volume dosing controls sole flexibility and density across all molds. • Faster Commissioning Time Factory-pre-calibrated screw shear speeds and temperature profiles match regional resin grades.

Technical Advantages of Our Machinery

• Rotary Multi-Station Efficiency: High-speed continuous rotary tables minimize cooling-time bottlenecks, allowing a single operator to manage up to 24 mold stations simultaneously.

• Servo-Hydraulic Energy Savings: Integrated servo-driven hydraulic systems automatically ramp down power output during holding and cooling states, cutting electricity draws by 30% to 50%.

• High Clamping Force Integrity: Robust mechanical toggle clamps prevent material leakage (flash) at mold parting lines, saving valuable raw materials.

• Versatile Material Compatibility: Designed to process both dense and expandable foaming PVC shoe material formulations with simple parameter adjustments.

Complete After-Sales Service & Support

We provide comprehensive lifecyle support to keep your footwear production lines running seamlessly:

• 1-Year Core Structural Warranty: Covers all vital electrical PLC, hydraulic, and mechanical driving systems.
• On-Site Plant Setup & Commissioning: Specialized technicians deploy to install, calibrate, and tune your new machinery.
• Staff Training Programs: Training for local workers in touchscreen HMI control, preventative maintenance, and color-mixing.
• 7/24 Direct Remote Diagnostics: Software engineers can securely access your control system to adjust parameters instantly.

Frequently Asked Questions

What is the standard delivery timeline for a complete PVC footwear line?

Our fastest manufacturing and factory pre-commissioning lead time is 25 days. Every line undergoes a rigorous one-week test run in our factory using local raw materials and molds before receiving export approval.

Can we source raw compounds and molds directly from your company?

Yes, we provide complete, integrated supply chain services. We offer high-quality PVC compound lots, custom molds, and alternative materials like EVA footwear material to satisfy diverse production needs under one contract.

How do you verify the machines before shipping?

We test all machinery with our local raw materials and your customized shoe molds for one week prior to shipping. This testing verifies that all heaters, hydraulic cycles, and rotary clamping units perform at full production speeds before they arrive at your plant.

What are your standard B2B payment terms?

We require a 30% deposit to confirm your order and initiate fabrication. The remaining 70% balance is remitted following successful video trial runs or on-site client inspection before container loading.
