EVA Shoes Machine

Scale your footwear brand with an advanced EVA footwear machine production line. We deliver full-servo machinery with custom aluminum molds and raw materials. Get in touch with us to consult with our 15+ years factory experts!

High-Performance EVA Shoe Making Machine Solutions

The global footwear market demands lightweight, durable, and highly resilient materials to keep pace with modern lifestyle and athletic trends. To meet this demand, we engineer advanced EVA shoe making machine setups designed for mass production. As an established machinery manufacturer, we supply fully integrated systems that empower players in the shoe manufacturing industry to scale their operations efficiently. From initial project evaluation to the final shipment of highly automated production setups, we provide comprehensive, reliable engineering solutions globally.

What is an EVA Injection Molding Shoe Machine?

An EVA shoes machine is a professional, fully automatic hydraulic system used to produce ethylene-vinyl acetate copolymer (EVA) footwear products. By using specialized EVA raw materials and high-durability aluminum injection molds, this EVA footwear machine fabricates highly resilient, lightweight, and heat-resistant items. It is the core manufacturing asset used to produce:

• Comfortable everyday slides and classic summer slippers.

• Clogs (such as Crocs-style shoes), sandals, and outdoor garden shoes.

• Heavy-duty waterproof rain boots and thermal winter boots.

• High-elasticity midsoles and outsoles for premium athletic shoes.

How the EVA Injection Shoes Machine Works

The manufacturing process relies on synchronized thermal expansion and foaming. The machine executes a precise, closed-loop sequence to convert raw copolymer pellets into finished footwear:

1. Material Preparation: Raw EVA pellets blended with foaming agents and pigments are prepared and fed into the machine's hopper.

2. Mold Preparation: High-grade aluminum footwear molds are securely clamped inside the machine's multi-station mold holders.

3. System Preheating: The machine's advanced heating plates warm up both the injection cylinders and the molds to precise target temperatures.

4. Parameter Setup: Operators configure exact melt temperatures, injection pressures, and volumetric material weight per pair using the centralized touchscreen HMI.

5. Injection & Foaming: The melted raw material is pumped into the molds via automatic injection nozzles. A heavy-duty $180\text{-ton}$ hydraulic clamping system holds the mold tightly under pressure while the material undergoes chemical expansion and foaming.

6. Cooling & Curing: Rapid internal cooling systems lower the mold temperature quickly, stabilizing the molecular structure of the expanded shoe.

7. Automatic Ejection: Once the foaming cycle completes, the safety doors and molds open automatically, allowing the expanded, finished shoe to be ejected safely.

Available Models & Station Selection Guide

Building an optimized, profitable shoe production line requires selecting the correct station configuration and color capabilities to match your specific market demands.

Precision EVA Shoe Mold Selection

To achieve seamless, flash-free output, your EVA slipper making machine must be paired with premium, high-precision tooling. We design and supply durable aluminum and steel injection molds engineered to match our machines perfectly:

• Slippers & Slides: High-yield EVA Injection Slipper Molds optimized with micro-textured surfaces for slip-resistant finishes.

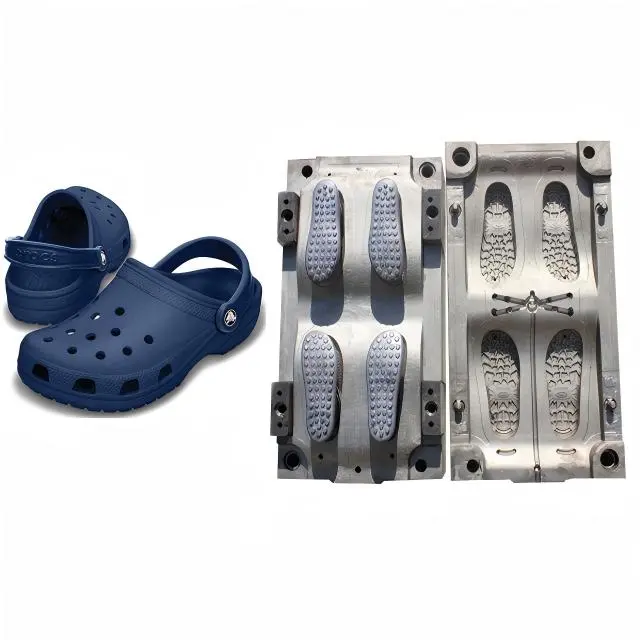

• Clogs & Sandals: Custom-engineered EVA Garden Shoe Molding featuring precise ventilation-hole pins and strap-fastener alignments.

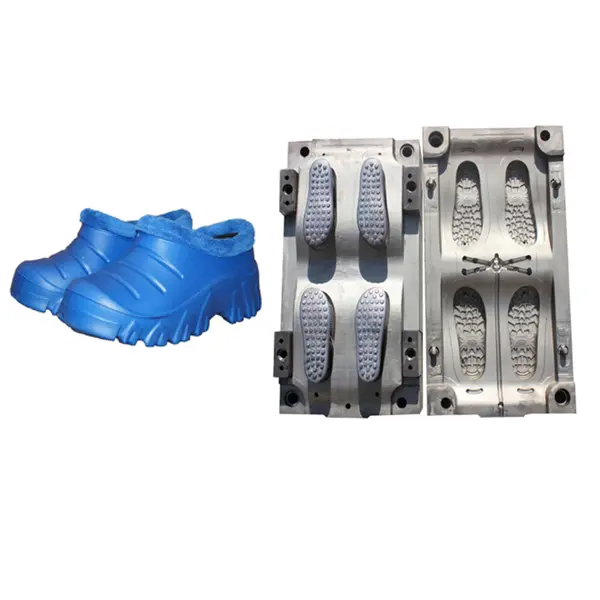

• Boots & Protective Gear: Specialized EVA Rain Boots Molds and deep-cavity EVA Winter Shoes Molds designed for thick, thermal-retaining footwear walls.

• Athletic Soles: Dedicated EVA Out-Sole Molds with high-density patterns (up to 8 pairs per mold) for high-speed mass production.

Manufacturing Materials Compatibility Matrix

Performance Validation Note: Bayeux validates injection parameters and multi-zone heating using customer-specified EVA raw pellets and foaming additives to prevent shoe shrinkage before shipment.

Machine Configurations & Technical Specifications

Parameter	Engineering Specification
Typical Production Capacity	120 - 180 pairs/hour (Single/Double station configurations)
Suitable Product Types	EVA Clogs, Soles, Slippers, Sandals, Lightweight Mid-soles
Mold Clamping Force	150 Tons - 250 Tons (Fully optimized hydraulic clamping)
Power & Energy Consumption	Installed: ≈ 90 kW - 150 kW (Stable Running Power: ≈ 70 kW)
Control Infrastructure	Proportional Hydraulic Control with Multi-Zone PID Heating │ Dedicated Footwear PLC Touchscreen

Raw Material & Validation Matrix

Typical Raw Materials	Pre-Shipment Performance Verification	Common Manufacturing Issues Prevented	Production & Manufacturing Benefits
• Ethylene-Vinyl Acetate (EVA) Pellets   (With varying VA content)   • Chemical Foaming Agent (ADC)   (Blowing agent additives)   • Cross-linking Agent (DCP)   (Curing & formulation control)   • Color Masterbatches   (Pigments & dispersion agents)	✔ Heating Zone Thermal Uniformity (± 0.5°C multi-zone tolerance check)   ✔ Hydraulic Clamping Pressure Stability (Continuous clamping force log)   ✔ Injection Shot Volume Repeatability (Precision cylinder dosing test)   ✔ Mold Ventilation Efficiency (Air evacuation and venting check)   ✔ 8-Hour Continuous Foaming Test (Continuous trial runs with customer molds)	• Post-Demolding Shrinkage & Warping   • Internal Voids / Surface Air Bubbles   • Density & Elongation Inconsistency   • Flash along Mold Parting Lines   • Yellowing or Material Burning	• Stable Product Quality   Precise foaming expansion rates are pre-calibrated to match the exact size requirements of each mold.   • Lower Reject Rates   High-precision proportional hydraulic clamping prevents mold flash, saving raw material costs.   • Shorter Cycle Times   Optimized mold plate cooling channels speed up solidification to maximize hourly throughput.   • Lower Energy Costs   Highly insulated heating plates and intelligent thermal PID loops preserve energy during long runs.

Technical Advantages of Our Machinery

• Significant Energy Savings: Our advanced hydraulic systems are driven by high-efficiency servo drives, reducing power consumption by 30% to 50% compared to traditional constant-delivery pump systems.

• Ultra-High Output Yields: Capable of handling high-density molds (ranging from 2 to 8 pairs per mold depending on product dimensions), maximizing daily floor throughput.

• Precise Material Clamping: Engineered with a heavy-duty 180 ton hydraulic clamping toggle system, ensuring complete mold closure to eliminate material flash and minimize raw material waste.

• Rugged Construction: Built on a monolithic, stress-relieved steel frame to absorb high operating forces and maintain zero mechanical drift over decades of continuous operation.

Complete After-Sales Service & Support

We protect your capital investment with a robust global after-sales and logistics support network:

• 1-Year Comprehensive Warranty: Full technical coverage on all core hydraulic, mechanical, and electronic control assemblies.
• On-Site Installation & Commissioning: Senior field engineers deploy directly to your facility to manage mechanical setup, connect hydraulic lines, and run test trials.
• Operator & Quality Control Training: Hands-on instruction for your local workforce, covering HMI programming, mold changing, and raw material moisture management.
• 7/24 Live Remote Technical Support: Secure remote-access modules allow our software engineers to diagnose control interfaces and tune parameters instantly.

Frequently Asked Questions

What is the delivery lead time for a complete EVA shoe production line?

Our standard manufacturing and testing timeline is highly competitive, with the fastest delivery times starting at 25 days depending on the configuration and mold customization requirements. Before shipping, we perform a rigorous one-week trial run using local raw materials and molds to ensure 100% operational readiness.

Can we source raw materials and footwear accessories directly from your company?

Yes. We offer an integrated, one-stop supply chain service. We supply premium-grade EVA raw materials, compatible foaming agents, blowing agents, pigments, and footwear accessories (including pre-fabricated shoe uppers, ornamental stickers, and decorative printing films) formulated to match our machinery's performance.

Do you test the machine with our specific molds before shipping?

Absolutely. We require a thorough pre-shipment quality verification protocol. We run the machine under production loads for at least one week, utilizing your specified molds and selected raw materials, to guarantee that all dimensional tolerances and expansion ratios meet your expectations before packing.

What are the standard payment terms for an equipment order?

Our B2B commercial terms require a 30% deposit to confirm the order and initiate custom CNC frame fabrication. The remaining 70% balance is remitted following successful video inspection or on-site client sign-off of the running machine prior to container loading and shipping.
