PVC Double Color PVC Shoe Mold

  • Mould material: Aluminum
  • Size: 450*220*180mm
  • Weight: 45-65kgs
  • Grading size 6.66mm
  • Mould life: 5 years

PRODUCT DETAIL

The Double color PVC shoe mold is specifically engineered for manufacturing high-volume, multi-color footwear with excellent structural definition. It successfully produces premium double-color PVC slippers, ergonomic sandals, sports soles, and flexible jelly shoes.

Operating alongside advanced automatic injection equipment, this tooling forms the dual-color sole and upper simultaneously inside the cavity. This one-time molding process eliminates separate assembly or gluing stages, drastically increasing factory working speed and total output within the modern shoe manufacturing industry.

We manufacture every Double color PVC shoe mold using high-grade aluminum alloys or premium tool steel. Aluminum molds deliver excellent heat conductivity and rapid thermal cycles, making them ideal for quick-turn production runs. Steel molds offer superior mechanical wear resistance, making them perfect for large-scale, long-term industrial manufacturing campaigns.

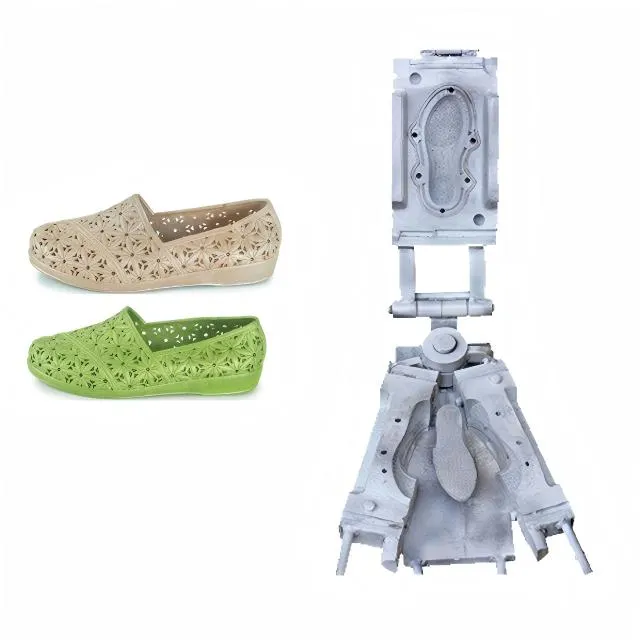

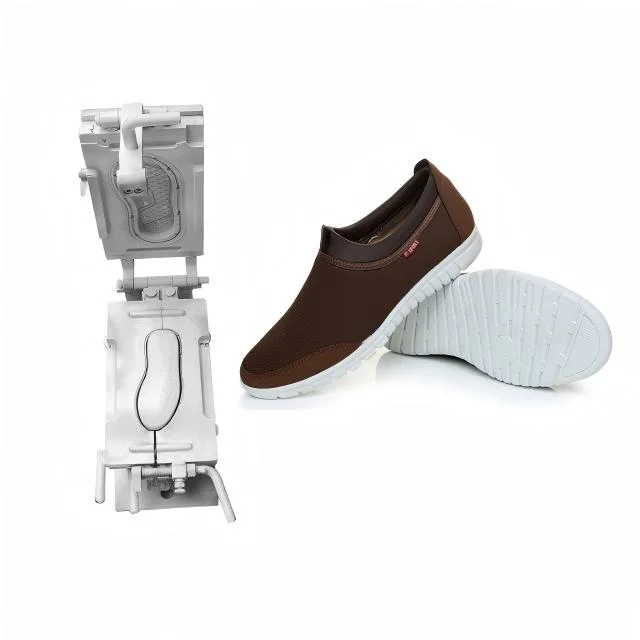

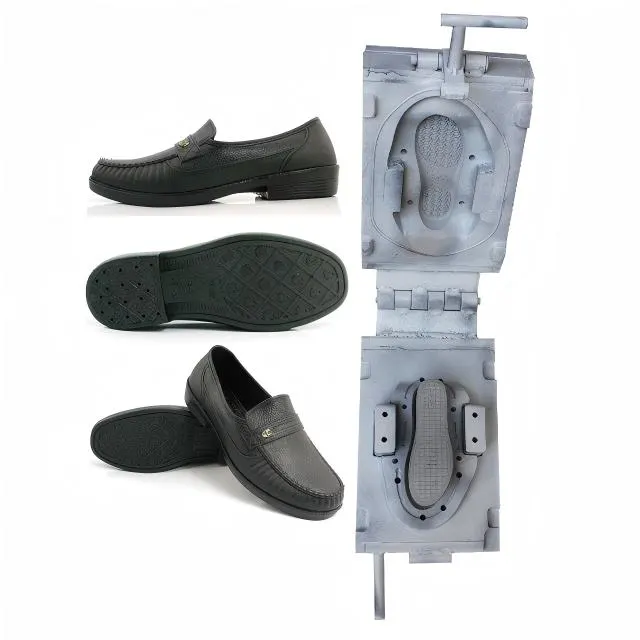

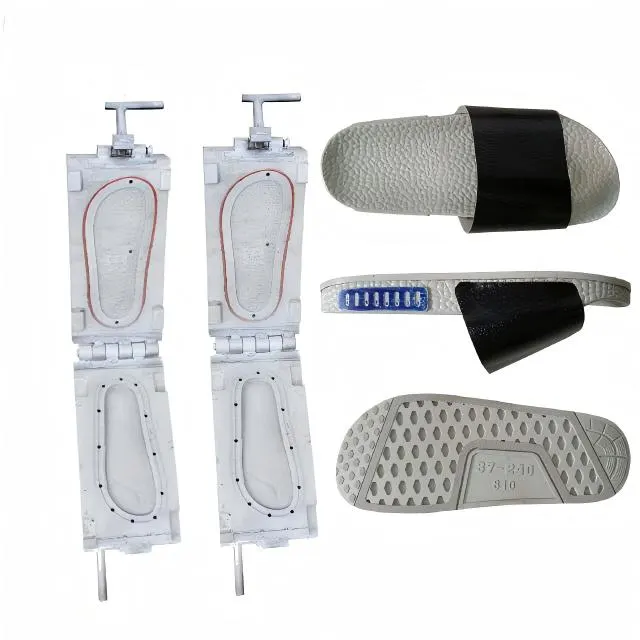

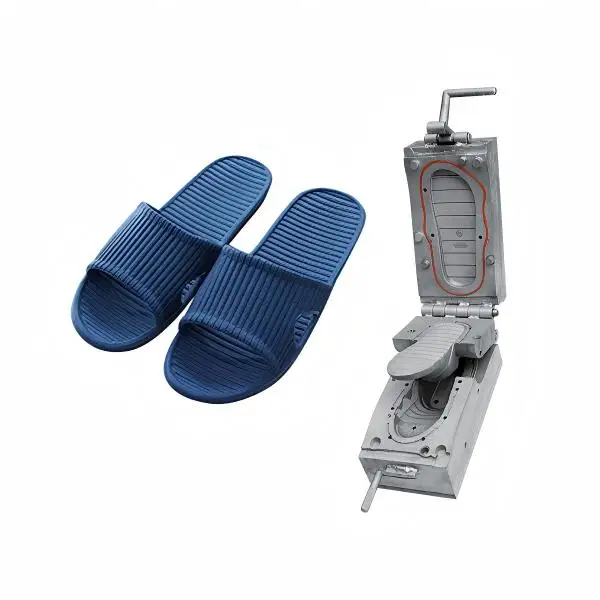

Our primary fabrication process combines industrial casting with high-precision CNC machining. We cast the heavy-duty mold frame first, then utilize multi-axis CNC technology to mill the intricate interior aluminum shoe last. A typical mold configuration includes:

  • Upper mould: Defines the complex top strap or dual-color vamp aesthetics.

  • Lower mould: Forms the bottom sole traction and tread patterns.

  • Middle aluminum last: Secures exact internal footwear dimensions and styling.

  • Color frame plate: This specialized plate isolates individual compounds during double-color injection cycles to prevent color bleeding.

How does pvc shoes mould works?

The tooling operates systematically across automated multi-station PVC footwear machine platforms using these precise manufacturing steps:

  1. Compatibility Check: Verify the exact mold height matches your machine clamping stroke specifications.

  2. Mechanical Installation: Securely mount the tooling inside the station and lock all structural fixing plate screws.

  3. Parameter Initialization: Program precise injection temperatures, dwell timing, and clamping pressures via the machine PLC system.

  4. Material Injection: Inject molten primary and secondary PVC compounds sequentially into the sealed, pre-heated cavity structures.

  5. Cooling & Setting: Allow the molten PVC compound to rapidly solidify and mirror the internal textures.

  6. Manual Extraction: Open the tooling once the automated cycle finishes and easily extract the completed footwear.

  7. Continuous Cycle: Rotate the station to initiate the next high-frequency manufacturing loop.

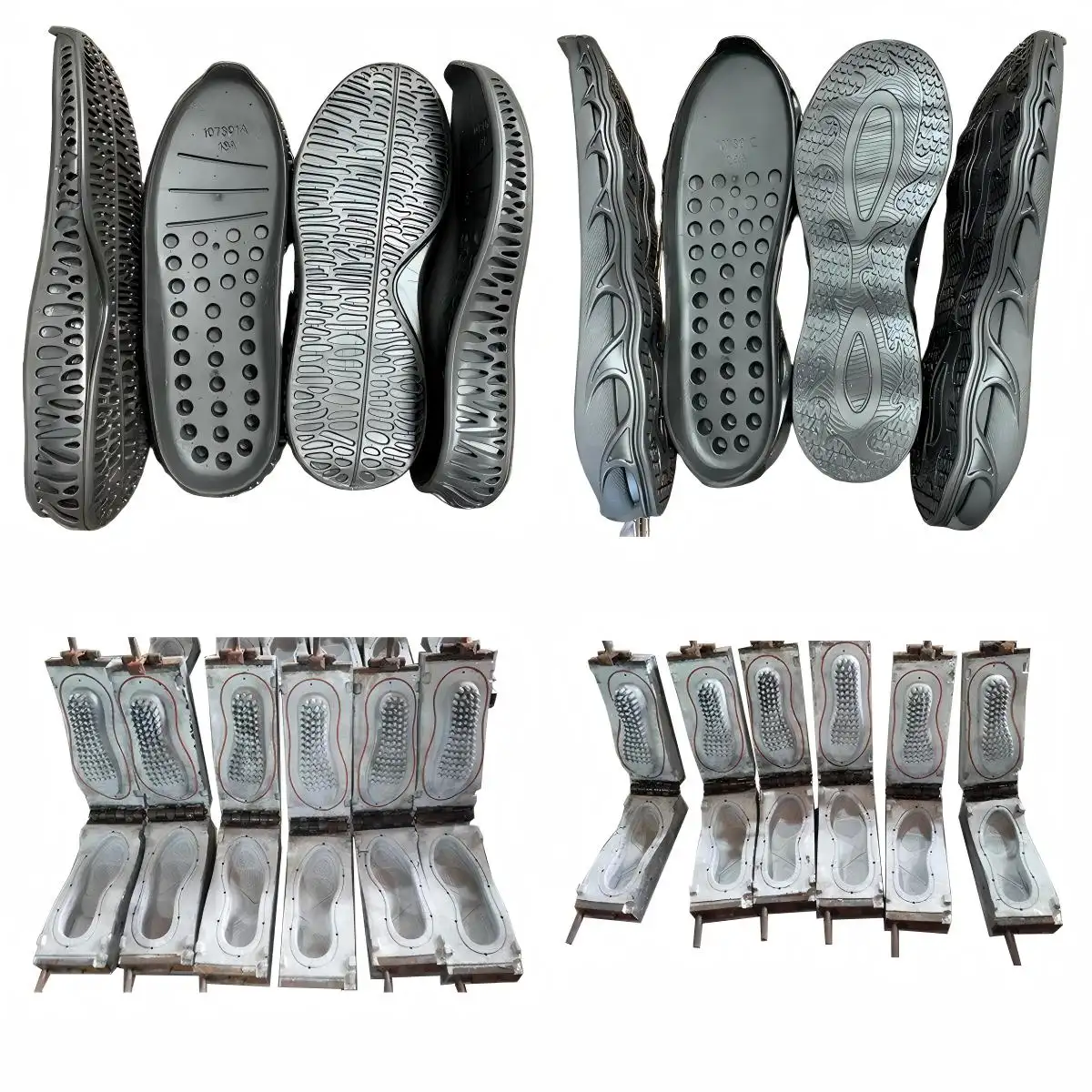

what shoe mould we can make

EVA foaming sole mould 1 mould 4/8 pairs PVC shoe molding 1 mould 1 piece
EVA foaming sole mould 1 mould 6/12 pairs PVC slipper shoe mould 1 mould 1 piece
EVA foaming slipper mould 1 mould 4 pairs PVC sole mould 1 mould 1 piece
EVA modern shoe molding 1 mould 1/2 pairs PVC shoe making mould 1 mould 1 piece
EVA rain boots mould 1 mould 1/2 pairs PVC shoe mould 1 mould 1 piece
EVA winter shoes mould 1 mould 1/2 pairs PVC out sole mould 1 mould 1 piece
EVA jogger outsole mold 1 mould 1/2 pairs PVC leather shoe mould 1 mould 1 piece
EVA slipper mould 1 mould 1/2 pairs PVC closed shoe mould 1 mould 1 piece
EVA shoe sole mold 1 mould 1/2 pairs PVC sole mold 1 mould 1 piece
EVA leather shos mould 1 mould 1/2 pairs PVC shoe mold 1 mould 1 piece
EVA shoe molding 1 mould 1/2 pairs PVC footwear sole mould 1 mould 1 piece
EVA footwear sole mould 1 mould 1/2 pairs PVC clogs shoe mould 1 mould 1 piece
EVA slipper sole mold 1 mould 1/2 pairs PVC rain boots mould 1 mould 1 piece
EVA clogs mould 1 mould 1/2 pairs PVC plastic shoe molding 1 mould 1 piece
EVA crocs shoe molding 1 mould 1/2 pairs PVC footwear shoe sole mould 1 mould 1 piece
Rubber mould 1 mould 1 pair DIP shoe molding 1 mould 1 piece
Rubber sole muld 1 mould 1 piece PVC DIP shoe mould 1 mould 1 piece
TPR mould 1 mould 1 piece DIP shoe making molds 1 mould 1 piece
PU sole mould for DIP shoes 1 mould 1 piece PVC mould 1 mould 1 piece
PU aluminum mould 1 mould 1 piece PVC shoe mould 1 mould 1 piece

Key features you can customize

We offer robust OEM/ODM engineering customization to meet rigorous commercial standards:

  • Design Development: Tailoring completely new geometric profiles based on target market consumer data.

  • Precision Sizing: Comprehensive sizing run adjustments across Men's, Women's, and Toddler regional standards.

  • Corporate Branding: High-precision CNC logo engraving or micro-embossing on the sole and upper cavities.

  • Technical Optimization: Digital parameter calculation for exact footwear wall thickness and compound density balance.

  • Multi-Color Layouts: Specialized multi-port configurations supporting vibrant, double-color injection formatting.

What shoes will be made and capacity details One hour for different station machine

Capacity 1 2 3 4 5 6
24 station 60 pairs 40 pairs 40 pairs 40 pairs 60 pairs 40 pairs

What kind service you can provide?or what prcess for order one pair shoe mould?

We operate as your dedicated industrial manufacturing partner through an exact, professional workflow:

  • Generating initial 2D blueprints and advanced 3D digital renderings from your concepts.

  • Fabricating a physical wooden dummy model to validate texture details and pattern depth.

  • Issuing commercial Proforma Invoices and scheduling CNC machining upon deposit confirmation.

  • Conducting rigorous factory testing and providing physical compound samples for client approval.

  • Compiling a complete technical reference data sheet outlining optimal machine pressure settings.

  • Packing components securely in heavy-duty plywood cases with complete export documentation for global transit.

FACTORY VIEW

Shoe mould factory view

SHIPPING

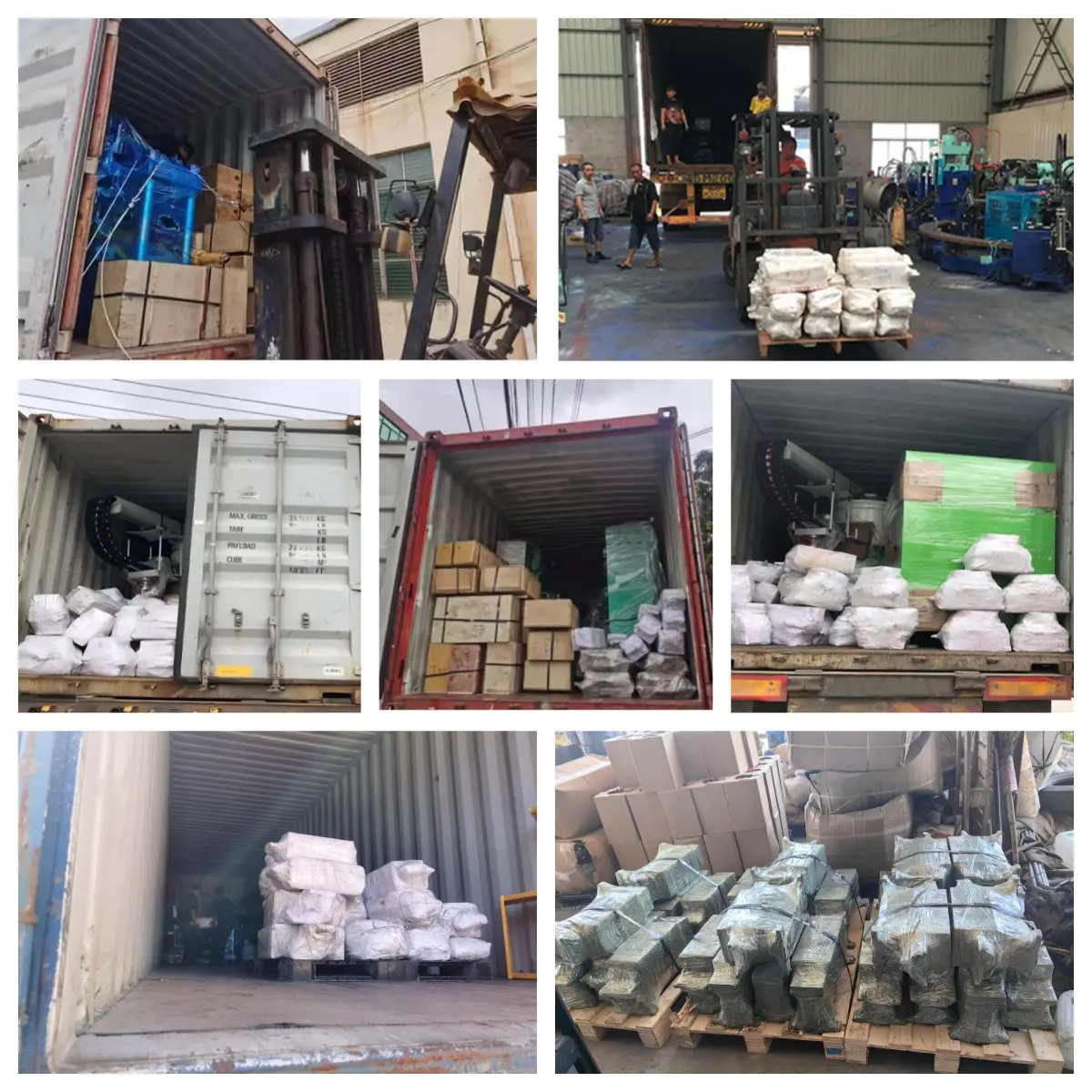

Shoe mould shiping 1

SOLUTIONS & FAQ



Q: What delivery time of this shoe mould?

A: 25-35 days after we confirm shoe mould details and receive your deposit.

Q: This shoe mould is suitable for what kind of products?

A: It is mainly used for producing PVC injection molded footwear such as slippers and sandals, covering different designs, sizes, and molds.

Q: How fast can this shoe mould produce shoes?

A: Depending on the mold and production setup, the output ranges from 40to 60 pairs per hour for the 24-station configuration.

Q: How much space should I prepare for installation?

A: The production line typically needs a workshop space of about 10m × 5m × 3.5m, allowing smooth operation and material handling.

Q: Is this machine difficult to operate for new workers?

A: Not at all. The machine uses a user-friendly control system, and we also provide full training to ensure operators can quickly learn how to run it safely and efficiently.

Q: What material is used in the production process?

A: The machine processes pvc raw material, which is heated, foamed, and injected into molds to form lightweight and durable shoe products.

Q: Can the machine be adjusted to different factory needs?

A: Yes, we can provide custom machine design and full production line planning, based on your factory layout, capacity target, and product requirements.
