Baby Diaper Machine

Maximize your factory output with our full-servo diaper manufacturing machine. Engineered for multi-size shifting, zero-speed splicing, and minimal material waste. Send your product specifications now to secure your professional B2B wholesale pricing!

High-Performance Baby Diaper Production Solutions

In the rapidly expanding global hygiene market, setting up a successful manufacturing line requires a balance of high-speed automation, raw material efficiency, and reliable technical backing. As a premier diaper making machine supplier with decades of engineering expertise, we provide a comprehensive, turnkey "Zero to One" service. We guide international investors and tissue converting factories through every stage—from factory layout design and mechanical configuration to raw material sourcing and operator training.

Our complete engineering catalog holds full CE and ISO certifications, ensuring your plant complies with international safety and manufacturing standards. Whether you are expanding an existing facility or searching for a high-efficiency diaper machine for sale to enter a new regional market, our equipment delivers the low-wastage, high-uptime performance needed to maximize your margins.

As an experienced machinery trading company, we bridge the gap between heavy industrial engineering and real-world plant profitability. We understand that your capital investment needs to translate into stable, reliable, and high-margin output from day one.

Baby Diaper Machine Selection Guide

Automated Working Stations & Process Flow

Our state-of-the-art diaper manufacturing machine lines utilize a synchronized, modular station architecture. These industrial converting systems function as high-yield assets within our broader range of advanced hygiene production equipment solutions:

1. Core Formation: High-speed hammer mills feed the Fluff Forming System, which works alongside a volumetric SAP Dosing System to create a uniform absorbent core.

2. Core Wrapping & Pressing: The fluff-polymer matrix is enveloped via upper/bottom tissue or nonwoven unwinding lines, then compressed through heavy-duty calender rolls to seal the core and prevent clumping.

3. Fluid Management Integration: The ADL (Acquisition Distribution Layer) is unwound, cut, and precisely positioned directly above the core to guide fluid surges away from the skin.

4. Barrier Cuff Construction: Hydrophobic nonwoven webs are automatically folded (inside and outside edge folding) and combined with high-elasticity Spandex strands to form the 3D anti-leak leg cuffs.

5. Chassis Assembly: The hydrophilic topsheet nonwoven, elasticated leg spandex, and backsheet PE film (or breathable laminated nonwoven) are combined and bonded through a central fixing unit.

6. Fastening & Final Cut: Hook tapes, PP side tapes, or frontal landing zones are thermally or ultrasonically bonded before the diaper profile goes through a final rotary contour die-cutter.

7. Output & Packaging: Finished products pass through automated inspection sensors and travel into a synchronized stacker for full-automatic or semi-automatic bag sealing.

Manufacturing Materials Compatibility Matrix

Performance Validation Note: Bayeux validates machine performance using customer-specified nonwoven fabrics, SAP grades, elastic materials, and PE films to ensure stable production before shipment.

Machine Configurations & Technical Specifications

Parameter	Engineering Specification
Typical Production Capacity	300 / 500 / 800 / 1000 pcs/min

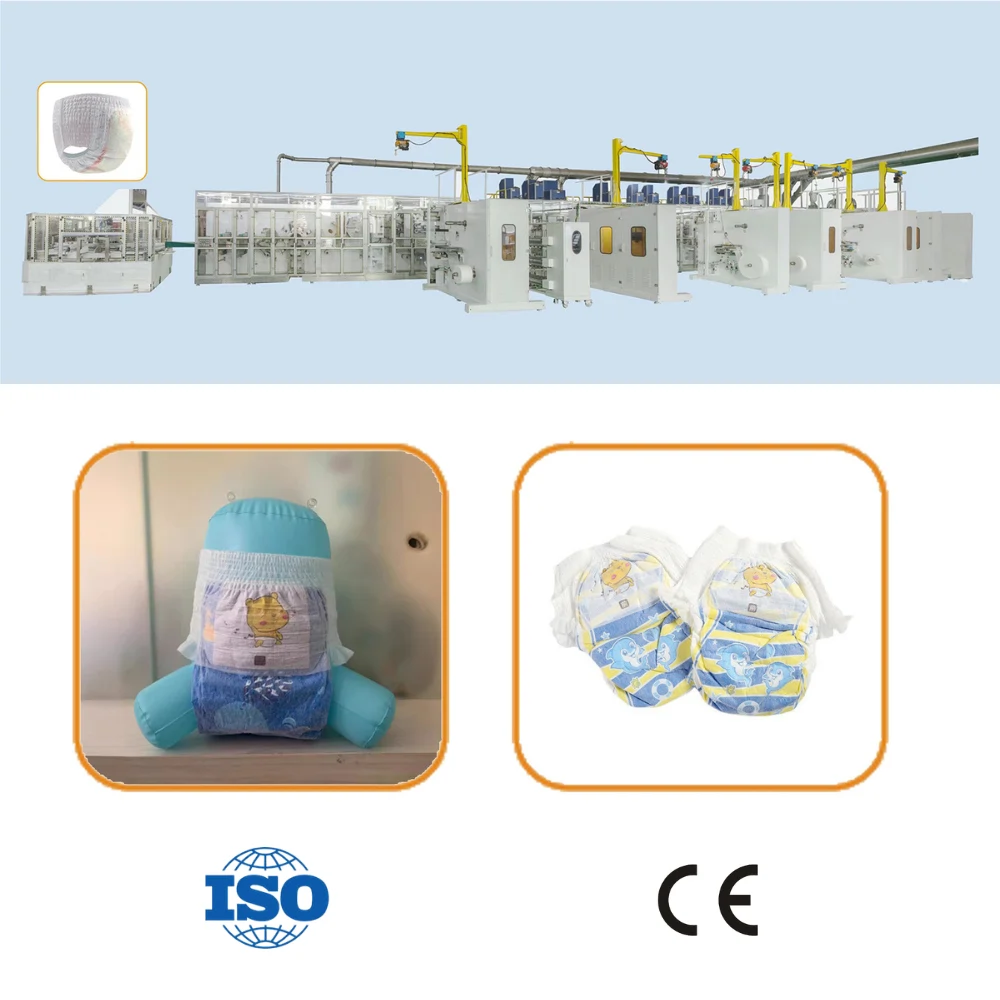

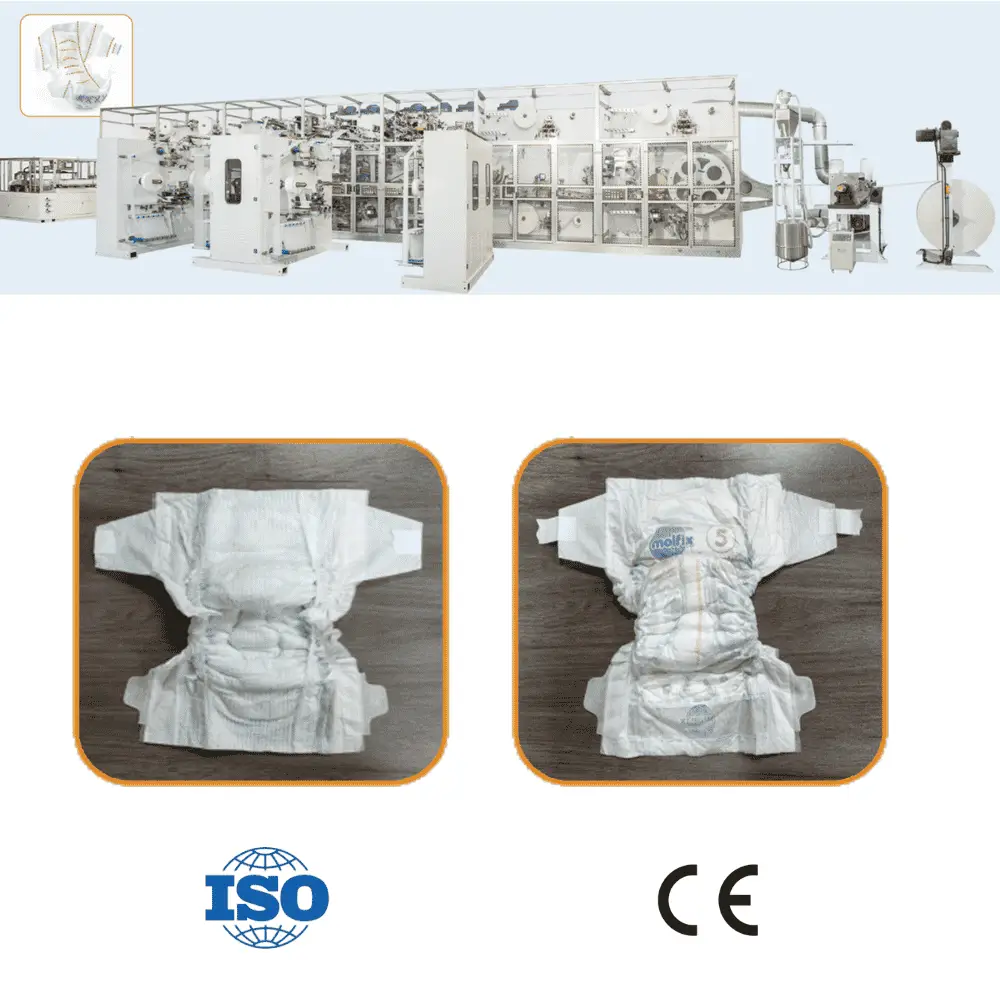

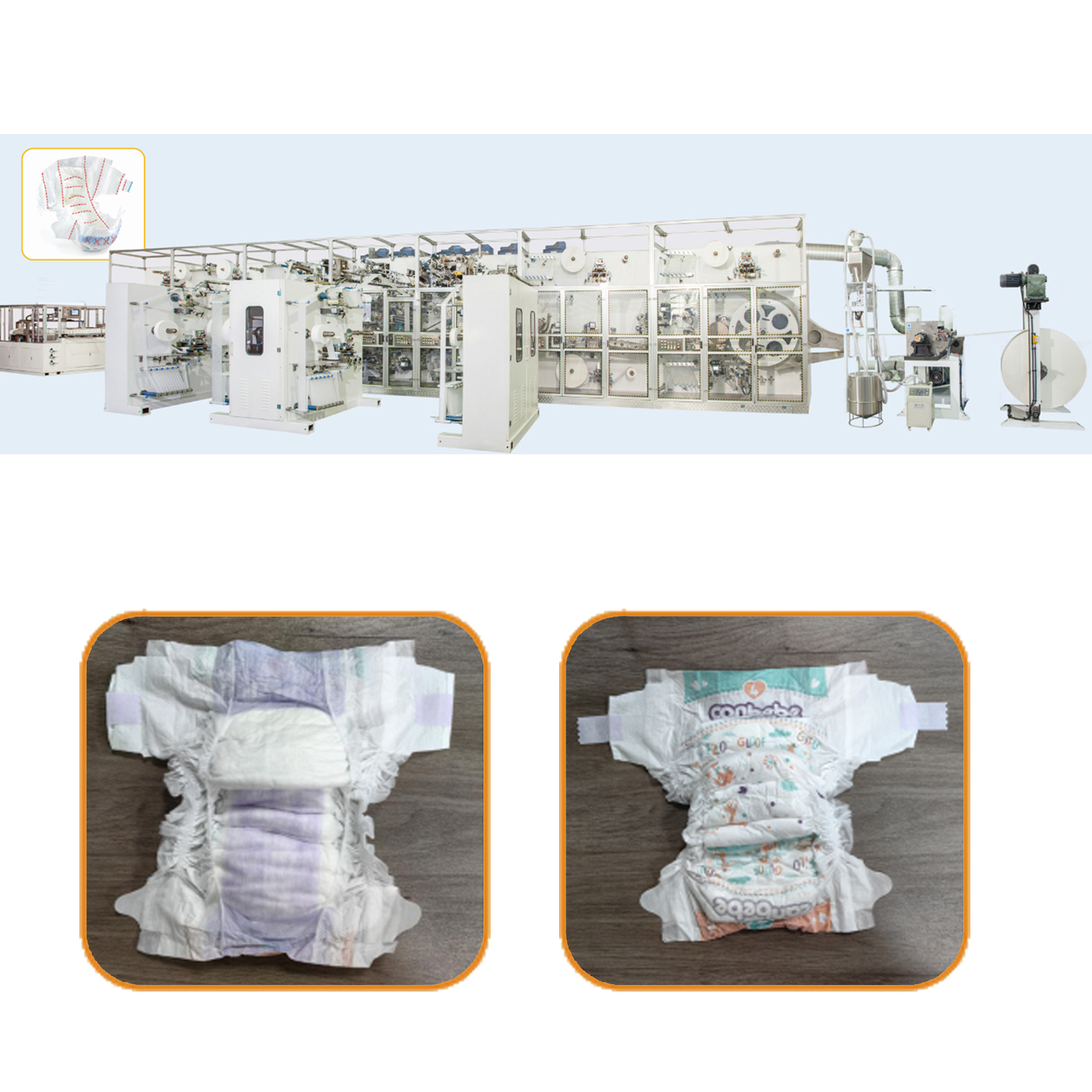

Suitable Product Types	Elastic Waistband Diapers, T-Shape Diapers, Baby Pull-Up Pants, Training Pants
Standard Machine Width	2400 mm - 3200 mm (Fully Customizable)
Power & Energy Consumption	Installed: ≈ 350 kW - 450 kW (Stable Running Power: ≈ 280 kW)
Control Infrastructure	Multi-axis closed-loop Servo System (Yaskawa/Siemens) │ PLC (Siemens S7-1500 Series)

Raw Material & Validation Matrix

Typical Raw Materials	Pre-Shipment Performance Verification	Common Manufacturing Issues Prevented	Production & Manufacturing Benefits
• Hydrophilic Nonwoven   (12 - 15 GSM)   • Super Absorbent Polymer (SAP)   (High-absorbency grade)   • PE Breathable Backsheet   (16 - 20 GSM)   • Spandex Elastic Thread   (560 - 840 dtex)   • Hot-Melt Adhesives   (Construction & Elastic)	✔ SAP Distribution Uniformity (± 3% tolerance test)   ✔ Core Weight Consistency (On-line beta-gauge verification)   ✔ Elastic Tension Tracking (Dynamic closed-loop dancer test)   ✔ Ultrasonic Seal Strength (Tensile load-to-break test)   ✔ 8-Hour Continuous Run (Simulating max line speed)	• SAP Leakage / Seam Blowouts   • Core Shifting / Wet-clumping   • Elastic Thread Snapping / Creep   • High-Speed Web Wrinkling   • Incomplete Adhesive Bonding	• Reduce Raw Material Waste   Achieves ≥ 98.5% material utilization rate.   • Improve OEE   Eliminates emergency stops caused by nonwoven web tearing.   • Reduce Operator Intervention   Fully automated zero-speed dynamic splicing.   • Lower Production Cost   Precision spray coating limits glue consumption.

Why Choose Our Diaper Production Lines?

Partnering with our specialized nappy machine supplier facility secures a highly optimized, industrial-grade converting asset engineered for long-term reliability:

• CNC Processing Integrity: All mechanical frames and structural steel bodies undergo precise monolithic CNC machining. This eliminates structural vibration during high-speed runs, drastically reducing mechanical wear.

• Minimized Raw Material Scrap Rates: Integrated with intelligent zero-speed web splicers and active tracking sensors, our lines minimize startup and roll-change waste, saving thousands in raw material expenses annually.

• Dual-Tier Investment Paths: We offer premium full-servo setups for high-volume markets, alongside highly cost-effective, semi-servo configurations for emerging brands seeking lower upfront capital outlays.

• Complete Supply Chain Integration: Beyond machinery, we offer a total raw material supply package (Fluff pulp, SAP, nonwovens, glues) alongside operator training to ensure your plant runs efficiently from day one.

Dedicated After-Sales & Commercial Logistics

To keep your automated factory running at peak efficiency, our nappy making machine factory network provides an extensive technical support system across the globe:

• Comprehensive 1-Year Structural Warranty: Covers all core mechanical components, backed by an extensive on-site or emergency spare parts inventory to eliminate extended production downtime.
• On-Site Installation & Mechanical Calibration: Our expert field engineers deploy directly to your facility to manage machine assembly, fine-tune tension controls, and run real-world production test cycles.
• Local Workforce Training & QC System Setup: We provide comprehensive training for your operators on HMI control, preventative maintenance, and establishing reliable quality control protocols.
• 7/24 Live Technical Response & Remote Diagnostics: Our engineering team stays accessible around the clock via secure remote-access modules to diagnose control systems and adjust software configurations instantly.

Lead Time & Delivery Logistics

The standard manufacturing lead time for a complete, custom-engineered nappy making machine production line ranges from 120 to 180 days. This window covers precise CNC fabrication, electrical wiring, programming, and a strict in-house testing phase. Before factory sign-off and shipping, the machine is run under real production conditions to guarantee it reaches your floor in 100% operational condition.
