PVC Direct Injection Footwear Mould

This direct injection footwear mould represents an advanced engineering solution for modern, high-volume shoe manufacturing. Traditional shoe-making methods involve fabricating the upper and sole separately, then bonding them with chemical adhesive or intense manual stitching. Conversely, the core of this technology lies in seamless, one-piece integrated molding.

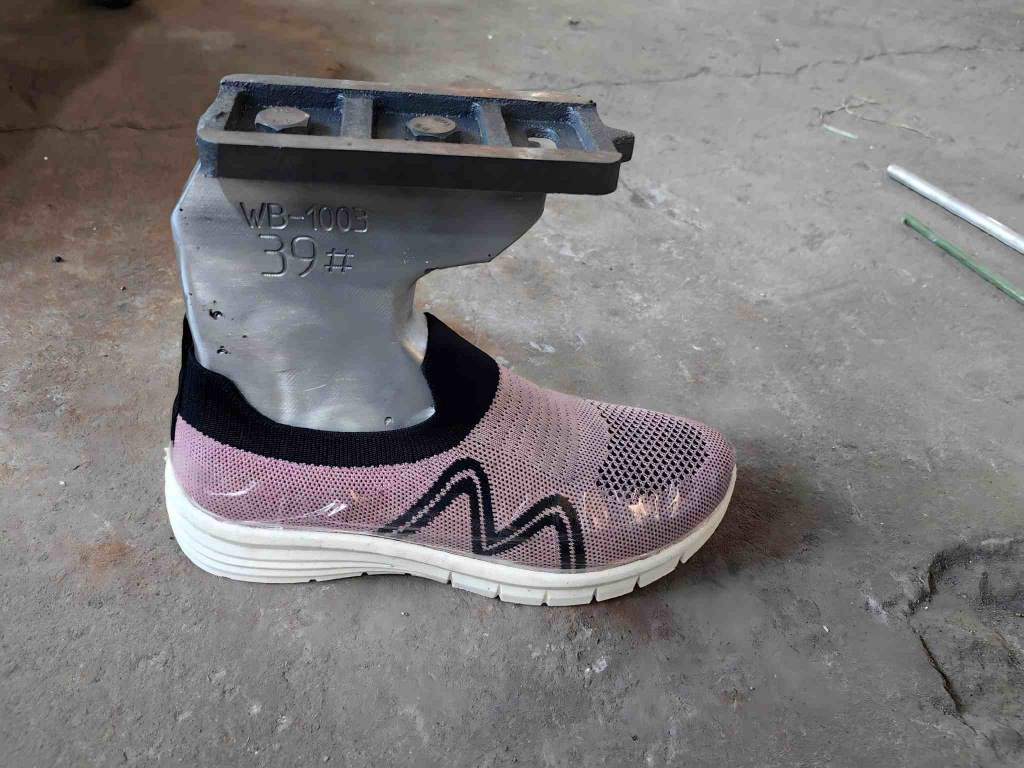

The manufacturing principle of this tooling is highly precise. Workers place a prefabricated leather or fabric upper onto the aluminum shoe last inside the tooling. The specialized PVC injection molding machine then injects molten PVC compound directly into the sealed cavity. This causes the sole material and the upper structure to fuse thoroughly at a molecular level before solidifying.

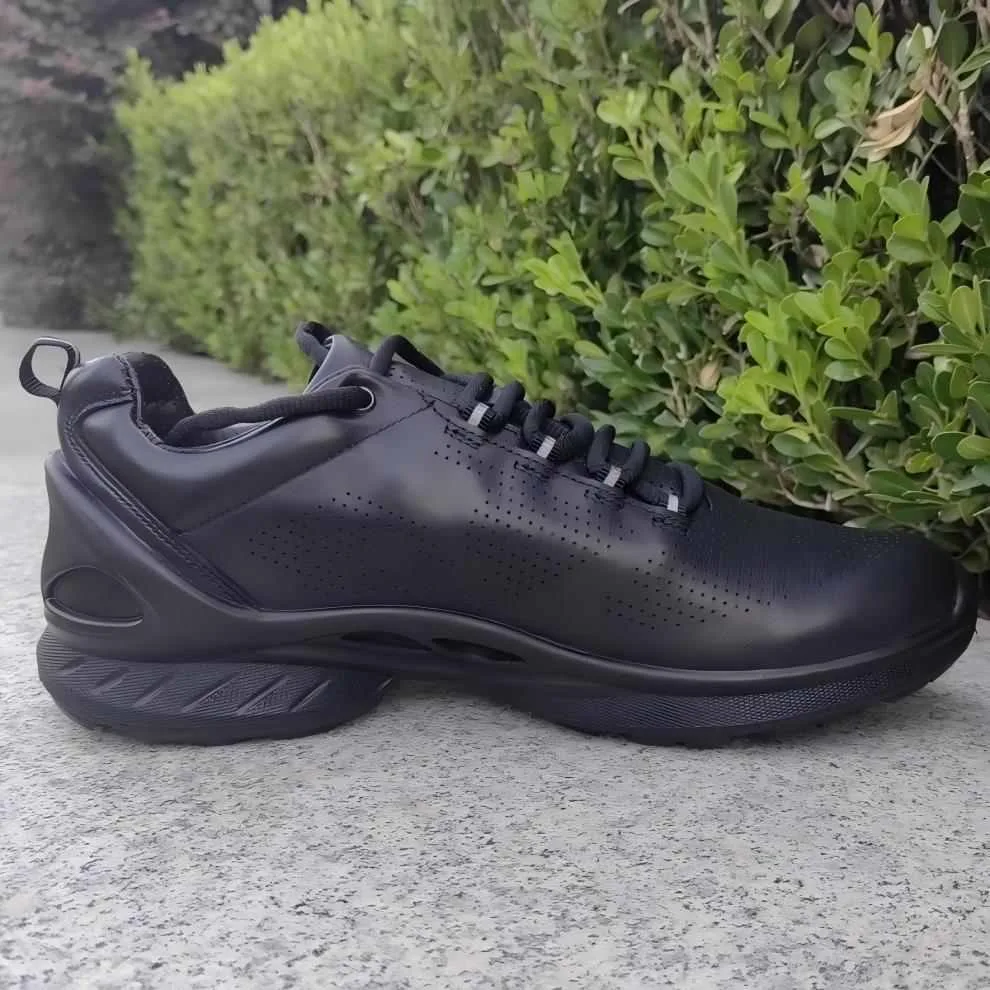

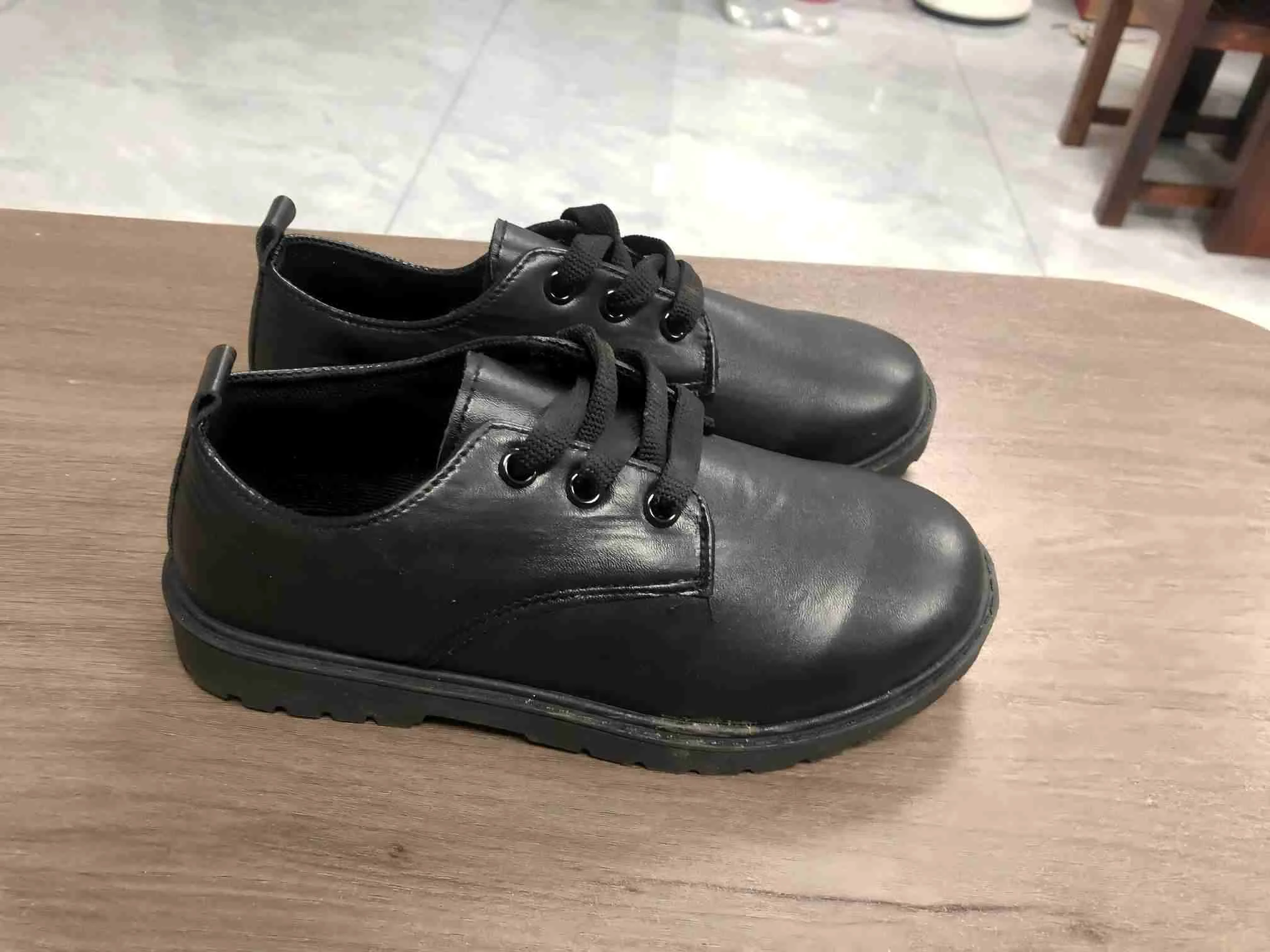

The finished shoes are entirely eco-friendly, featuring zero thread lines or volatile chemical adhesives. Footwear produced via this method is incredibly durable and provides a lightweight, highly flexible feeling for the end user. Implementing this setup on your shoe production line offers three major industrial advantages:

• Sturdy Molecular Bond: The chemical fusion prevents the sole from delaminating or losing its geometric shape over time.

• Optimized Output Capacity: Tooling molds the product in one streamlined step, completely eliminating subsequent slow bonding processes.

• Flexible Design Capability: Facilitates the efficient integration of dual-color, multi-color, or variable-hardness designs across the bottom sole.

A standard industrial mold assembly consists of an upper mould with integrated injection gates, a heavy-duty lower mould with anti-slip tread patterns, a central aluminum shoe last, and precision left/right moving side frames that split cleanly for rapid product extraction.
