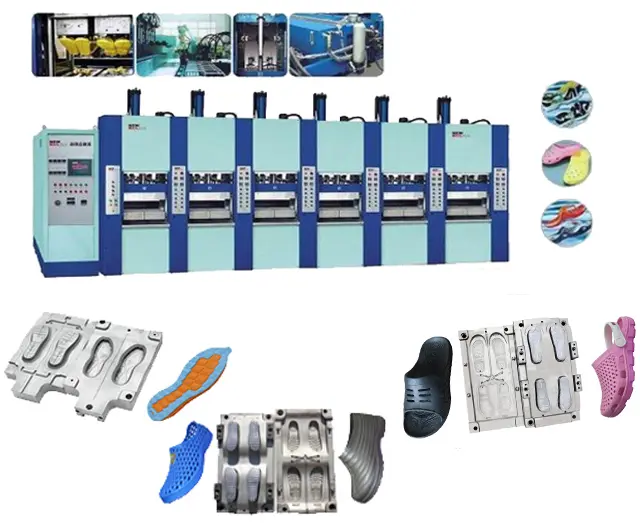

Four station eva shoes moulding machine
PRODUCT DETAIL
The EVA injection shoe machine is a highly efficient and advanced equipment which has four stations. With 180tons clamping force pressure,precision control over temperature, pressure, and timing. This EVA injection shoe machine can make different design EVA shoes, EVA clogs, EVA jooger sole,EVA rain boots and winter shoes.
Equipped with PLC + HMI touchscreen for precision control over temperature, pressure, injection speed, and cycle time; stores multiple recipes for different products.
High capacity EVA injector in diameter 65mm or 70mm, one time can inject 850-950gram EVA raw material, and heating from 280 seconds until 400 seconds, low quantity and high quantity EVA raw material shoes and sole are all could be produced by this EVA injection shoes machine.
Simens system or Schneider system or Delta system is posibili as an option according to customer willing.
Equipped with PLC + HMI touchscreen for precision control over temperature, pressure, injection speed, and cycle time; stores multiple recipes for different products.
High capacity EVA injector in diameter 65mm or 70mm, one time can inject 850-950gram EVA raw material, and heating from 280 seconds until 400 seconds, low quantity and high quantity EVA raw material shoes and sole are all could be produced by this EVA injection shoes machine.
Simens system or Schneider system or Delta system is posibili as an option according to customer willing.
TECHNICAL SPECIFICATIONS
| 1 | Design speed | 24-160pairs /hour(4 station size) |
| 2 | Power supply | 380V ±5%、50Hz( 3 phase, 5lines) |
| 3 | Installation | 200KW(excluding air compressor, glue machine) |
| 4 | Power used | 150KW |
| 5 | Electric wire | 3×120mm2+1×50mm2+1×50mm2 |
| 6 | Air compressor | 0.6-0.8Mpa |
| 7 | Product weight tolerance | ±3% |
| 8 | Qualified rate | ≥97% (excluding raw material and mould) |
| 9 | Efficiency | ≥95% |
| 10 | Machine sizes(L*W*H) | 6.2m×4.5×3m |
| 11 | Working size | 20m×10m×6m |
| 12 | Machine weight | 18Tons |
| 13 | Machine color | Blue（Can be designed as customer's demand） |
| 14 | Container | 1*40HQ |
| 15 | Machine direction | Face machine from left to right |
Specification for 2/4/6/8 station machine
| Item | Unit | 2station | 4station | 6station | 8station |
| Raw material | Tons | EVA | EVA | EVA | EVA |
| station number | Pcs | 2 | 4 | 6 | 8 |
| Clamping Force | ton | 180 | 180 | 180 | 180 |
| Mold Plate Size | mm | (290*550)*2 | (290*550)*2 | (290*550)*2 | (290*550)*2 |
| Mould height | mm | 100-230 | 100-230 | 100-230 | 100-230 |
| Mold-opening Stroke | mm | 350 | 350 | 350 | 350 |
| Injector | 1 | 2 | 2 | 2 | |
| Diameter of Screw | mm | Φ65 | Φ65 | Φ65 | Φ65 |
| Injection Cap(Max) | cm³ | 920 | 920 | 920 | 920 |
| Injection Pressure | kg/cm² | 0-130 | 0-130 | 0-130 | 0-130 |
| Injection Speed | cm/sec | 0-10 | 0-10 | 0-10 | 0-10 |
| Rotating Speed of Screw | r.p.m | 0-190 | 0-190 | 0-190 | 0-190 |
| Temperature Control | section | 4 | 4 | 4 | 4 |
| Electricity Consumption | Pairs/24 hours | 2200 | 4500 | 6800 | 9200 |
| (EVA slipper) | |||||
| Heater Barrel | kw | 9.8*1 | 9.8*2 | 9.8*2 | 9.8*2 |
| Heating Plate | kw | 25.6 | 51.2 | 76.8 | 102.4 |
| Hydraulic System | kw | 22 | 51.9 | 51.9 | 51.9 |
| Vacuum Pump | hp | 1.5 | 1.5 | 1.5 | 1.5 |
| Cooling Fan of Barrel | hp | 1 | 1 | 1 | 1 |
| Total Electricity | kw | 57.4 | 122.7 | 148.3 | 155.8 |
| Oil Tank Size | L | 600 | 800 | 1000 | 1000 |
| Machine Weight | kg | 9000 | 18000 | 26000 | 33000 |
| Machine Dimension | mm | 4400*4500*3000 | 6200*4500*3000 | 8000*4500*3000 | 9800*4500*3000 |
What shoes can be made and capacity details one hour for different station machine
| Capacity |  |
 |
 |
 |
 |
 |
| 2 station | 12 pairs | 48 pairs | 80 pairs | 48 pairs | 60 pairs | 32 pairs |
| 4 station | 24 pairs | 96 pairs | 160 pairs | 96 pairs | 120 pairs | 64 pairs |
| 6 station | 36 pairs | 144 pairs | 240 pairs | 144 pairs | 180 pairs | 96 pairs |
| 8 station | 48 pairs | 192 pairs | 320 pairs | 192 pairs | 240 pairs | 128 pairs |
CORE ADVANTAGES
- Full automatic raw material feeding system.
- PLC control system to adjust temperature, pressure, injection time.

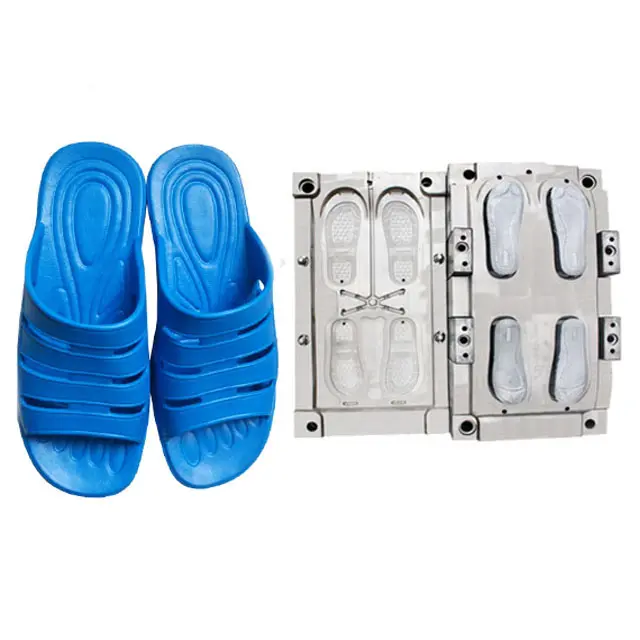

- Movable molds are used to produce shoes of different styles.

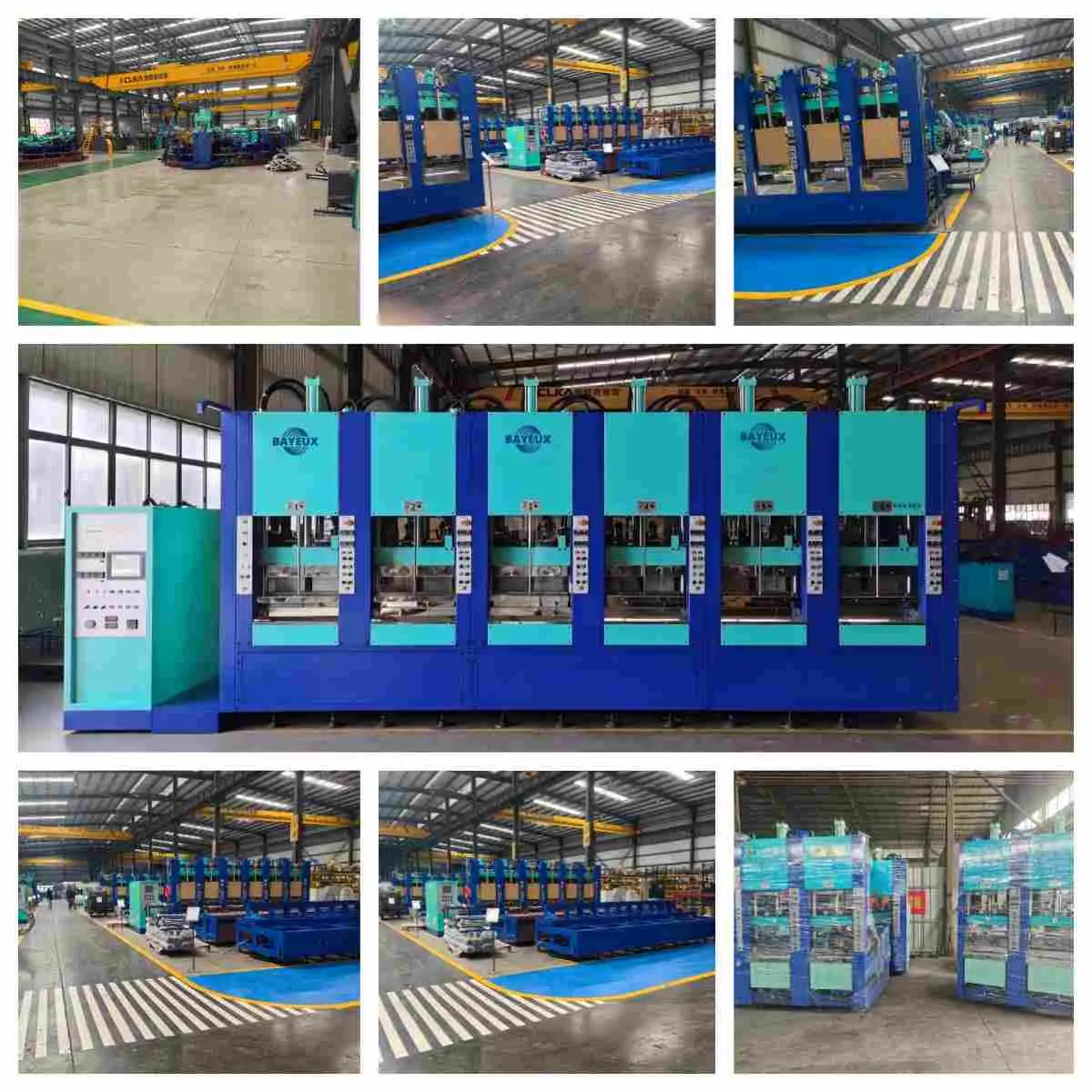

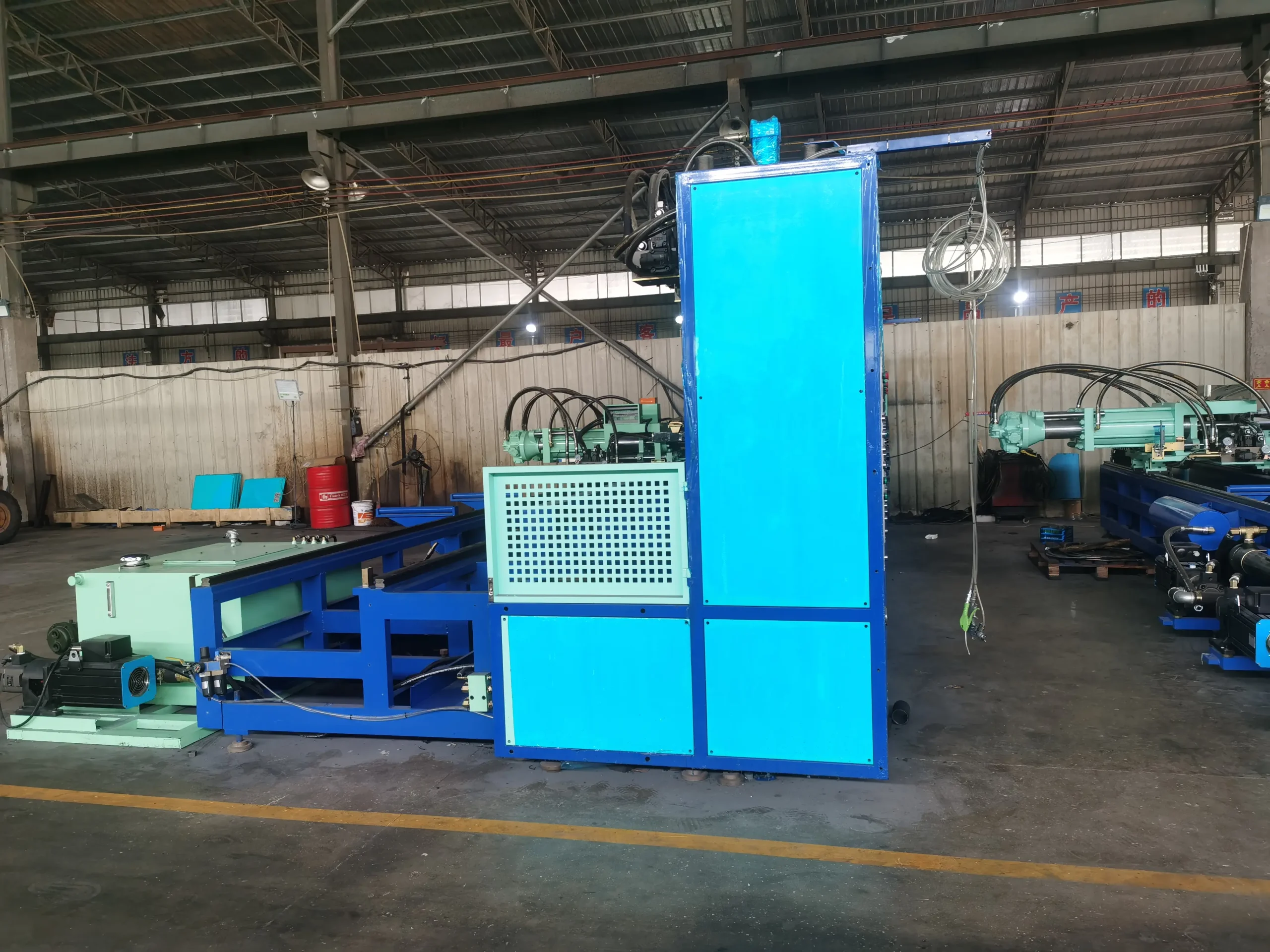

FACTORY VIEW

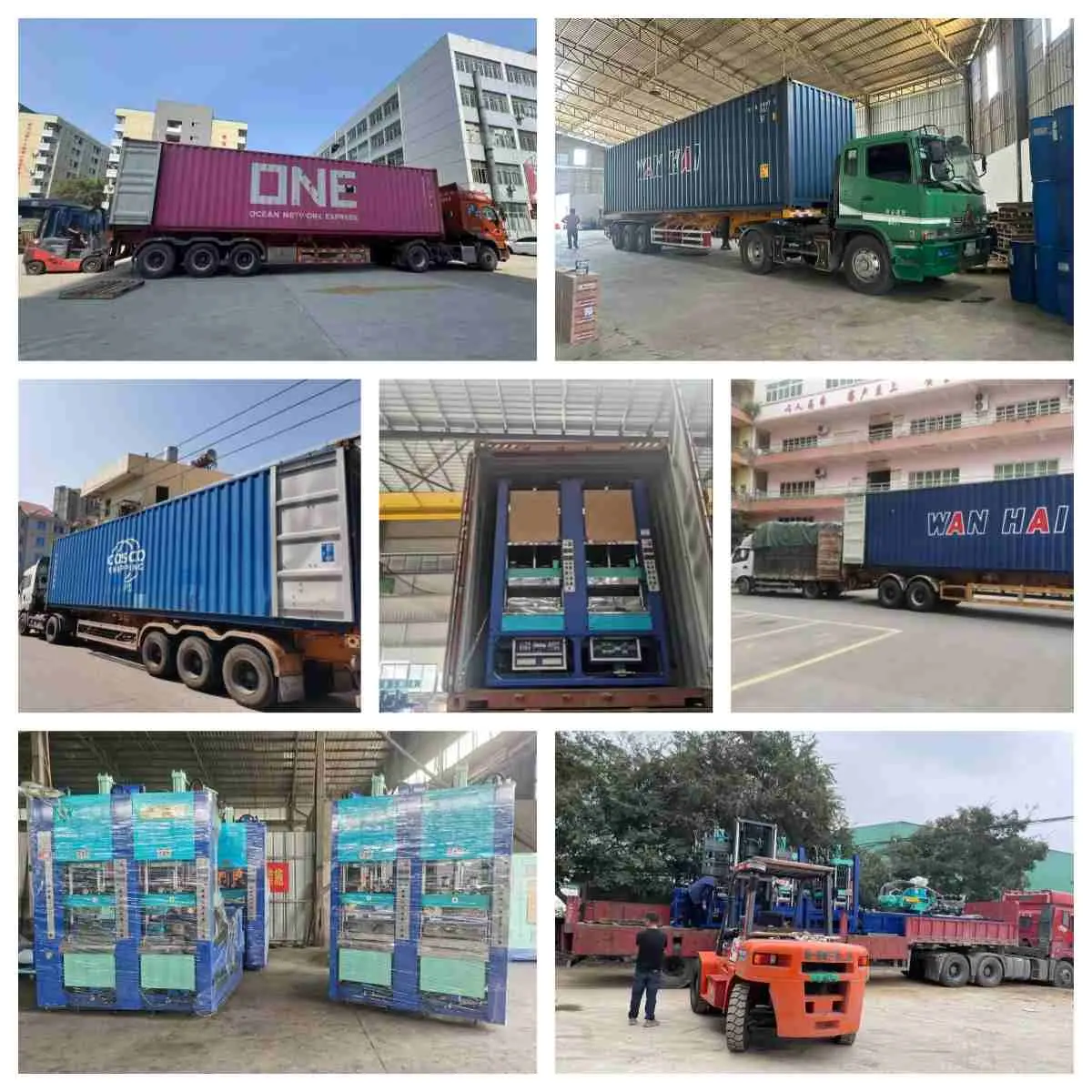

SHIPPING
SOLUTIONS & FAQ
Q: Is this machine suitable for mass production of EVA shoes?
A: Yes, it is designed for high-volume production with stable output and consistent quality.
Q: What is the advantage of the four-station design?
A: Four stations work in rotation, reducing idle time and increasing production efficiency.
Q: What is the production capacity of this making machine?
A: Capacity is about 24–160 pairs/hour depending on shoe size and mold design.
Q: What control system does it use?
A: It uses PLC + HMI touchscreen for precise control of temperature, pressure, and timing.
Q: Can the machine be customized?
A: Yes, Siemens, Schneider, or Delta systems are optional based on customer needs.
Q: Do you provide installation and training?
A: Yes, we provide installation, debugging, and operator training on-site or remotely.
Q: Are EVA shoes moulding machine energy-efficient?
A: EVA shoes moulding machine are designed to be energy-efficient. They incorporate energy-saving features, such as efficient heating systems and motor controls, to minimize energy consumption during operation.
