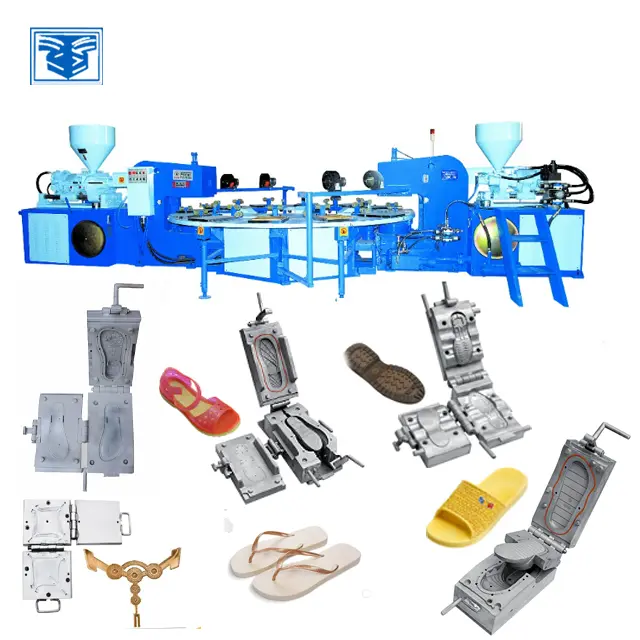

PVC two color injection shoes machine
PRODUCT DETAIL
One color and two color PVC shoes is all possible produced in this machine.
20 station and 24 station is best design for one round shoes running, once previous shoes finished injection raw material and go to cooling it self, then next shoes will be continued to injection raw material and go to next step.
The air-blowing system is needed depend on what kind shoes you want to make, we have designer air-blowing system inside machine, if you need it, open it, if you want to make jelly shoes without air-blowing system, closed it. so PVC air-blowing shoes mould and PVC jelly shoes mould all can be used in this machine.
Working together PVC shoes mould, PVC slipper mould, PVC jelly shoes mould, PVC sole mould, PVC raw material.
TECHNICAL SPECIFICATIONS
| 1 | Design speed | 140-240 pairs /hour(24 station size) |
| 2 | Power supply | 380V ±5%、50Hz( 3 phase, 5lines) |
| 3 | Installation | 20KW(excluding air compressor, glue machine) |
| 4 | Power used | 18KW |
| 5 | Electric wire | 3×120mm2+1×50mm2+1×50mm2 |
| 6 | Air compressor | 0.6-0.8Mpa |
| 7 | Product weight tolerance | ±3% |
| 8 | Qualified rate | ≥97% (excluding raw material and mould) |
| 9 | Efficiency | ≥95% |
| 10 | Machine sizes(L*W*H) | 8.7*8*2.5meters |
| 11 | Working size | 20m×10m×6m |
| 12 | Machine weight | 5.8Tons |
| 13 | Machine color | Blue（Can be designed as customer's demand） |
| 14 | Container | 1*40HQ |
| 15 | Machine direction | Face machine from left to right |
Specification for 2/4/6/8 station machine
| Item | Unit | 20 station | 24 station |
| Raw material | Tons | PVC/TPR | PVC/TPR |
| station number | Pcs | 24 | 30 |
| Clamping Force | ton | 80/100 | 80/100 |
| Mold Plate Size | mm | 460*220*280 | 460*220*280 |
| Mould height | mm | 280 | 280 |
| Mold-opening Stroke | mm | 280 | 280 |
| Injector | 1 | 1 | |
| Diameter of Screw | mm | Φ70 Φ65 | Φ70 Φ65 |
| Injection Cap(Max) | cm³ | 770/660 | 770/660 |
| Injection Pressure | kg/cm² | 0-130 | 0-130 |
| Electricity Consumption | Pairs/24 hours | 2500 | 3000 |
| Heating Plate | kw | 17.3 | 17.3 |
| Total Electricity | kw | 27 | 27 |
| Machine Weight | kg | 14000 | 14000 |
| Machine Dimension | mm | 8700*8000*2550 | 8700*8000*2550 |
What shoes can be made and capacity details one hour for different station machine
| Capacity |  |
 |
 |
 |
 |
 |
| 20 station | 180 pairs | 80 pairs | 80 pairs | 80 pairs | 80 pairs | 80 pairs |
| 24 station | 200 pairs | 100 pairs | 100 pairs | 100 pairs | 100 pairs | 100 pairs |
CORE ADVANTAGES
Advanced Injection Molding Technology for Superior Footwear Quality
Our shoemaking machines are equipped with high-precision injection molding systems and intelligent process control technology, ensuring accurate material distribution and consistent molding performance. This enables us to produce comfortable, durable, and flexible shoes. Every pair of shoes is manufactured to rigorous, reliable quality standards, minimizing defects and maximizing customer satisfaction.
Intelligent Automation for Increased Production Efficiency
Our machines are designed specifically for the modern footwear industry, integrating advanced PLC control systems, touchscreen operation, and automated production processes. Real-time monitoring and precise control ensure stable and continuous machine operation while reducing reliance on manual labor. This results in faster production cycles, higher output, and more efficient overall production.
Flexible and Cost-Effective Manufacturing Solutions
Our equipment is designed to maximize material utilization and minimize energy consumption. With a quick mold change system and flexible production configurations, manufacturers can quickly switch between different shoe styles, sizes, and product categories. This combination of efficiency, flexibility, and low operating costs helps factories respond quickly to market demands while maintaining strong profitability.
