One color eva foaming shoes machine
PRODUCT DETAIL
This is traditional EVA foaming shoes and sole machine, which is most popular in Bangladesh and India market, every year we sale 100 sets machine there, we are number one eva foaming machine supplier in Bangladesh.
Easy operating, smart body , costly and competitive price make this machine is welcome to lower investor. The machine only have one station, but can put two mould togethers, 1 mould can put 4 pairs or 4 size slippers or shoes, which can produce different design of shoes and slipper through to change different shoe mould. Apart from EVA injection shoes machine, the way of this machine process is put raw material inside mould, and then use machine high temperture to press mould and heating, 5-8 minutes later, the shoes or slippers is full shaped, then machine open mould automatic, and take out shoes or slippers, put plastic shoe last inside shoes to fix shape.

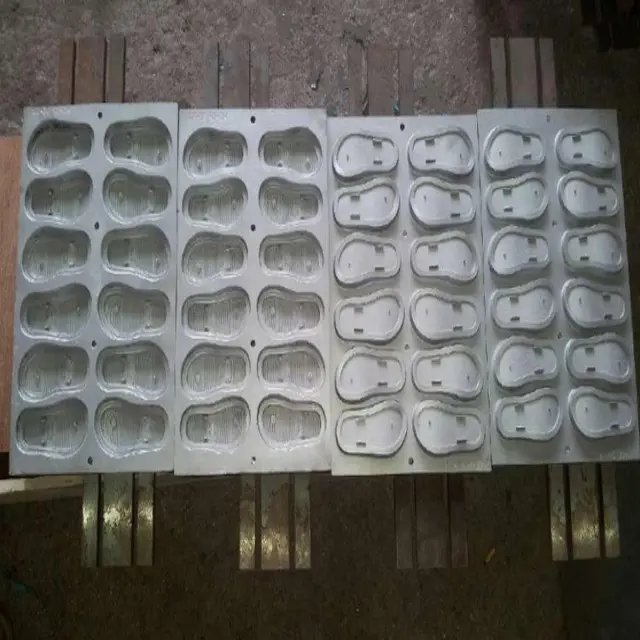

So almost three step can finish one pair shoes, EVA foaming mahcine, EVA foaming mould, EVA raw material.
Easy operating, smart body , costly and competitive price make this machine is welcome to lower investor. The machine only have one station, but can put two mould togethers, 1 mould can put 4 pairs or 4 size slippers or shoes, which can produce different design of shoes and slipper through to change different shoe mould. Apart from EVA injection shoes machine, the way of this machine process is put raw material inside mould, and then use machine high temperture to press mould and heating, 5-8 minutes later, the shoes or slippers is full shaped, then machine open mould automatic, and take out shoes or slippers, put plastic shoe last inside shoes to fix shape.
So almost three step can finish one pair shoes, EVA foaming mahcine, EVA foaming mould, EVA raw material.
TECHNICAL SPECIFICATIONS
| 1 | Design speed | 40pairs /hour |
| 2 | Power supply | 380V ±5%、50Hz( 3 phase, 5lines) |
| 3 | Installation | 20KW(excluding air compressor, glue machine) |
| 4 | Power used | 15KW |
| 5 | Electric wire | 3×120mm2+1×50mm2+1×50mm2 |
| 6 | Air compressor | 0.6-0.8Mpa |
| 7 | Product weight tolerance | ±3% |
| 8 | Qualified rate | ≥97% (excluding raw material and mould) |
| 9 | Efficiency | ≥95% |
| 10 | Machine sizes(L*W*H) | 1.8*1.1*1.8 |
| 11 | Working size | 10m×8m×6m |
| 12 | Machine weight | 3.5Tons |
| 13 | Machine color | Blue or Green（Can be designed as customer's demand） |
| 14 | Container | 1*20GP can load 6 sets machine |
| 15 | MOQ | 1 SET shipping in LCL with plywood case |
Specification for one station machine
| Item | |||
| Total pressure(Clamping Force) | 2.00 (200 Tons) | ||
| Hot plate size | MM | 780*550 | |
| Working layer | Layer | 1 station | |
| Mold Size | 2 mould work together | 1 mould 4 pairs | |
| Heating power | KW | 14.85 | |
| Motor power | KW | 5.5 | |
| Dimension | Meter | 1.8*1.1*1.8 | |
| Production capacity | Pair/hour | 40 | |
| Weight | Ton | 3.7 | |
| Operation mode | Automatic system | ||
| Structure mode | Frame structure (As picture) | ||

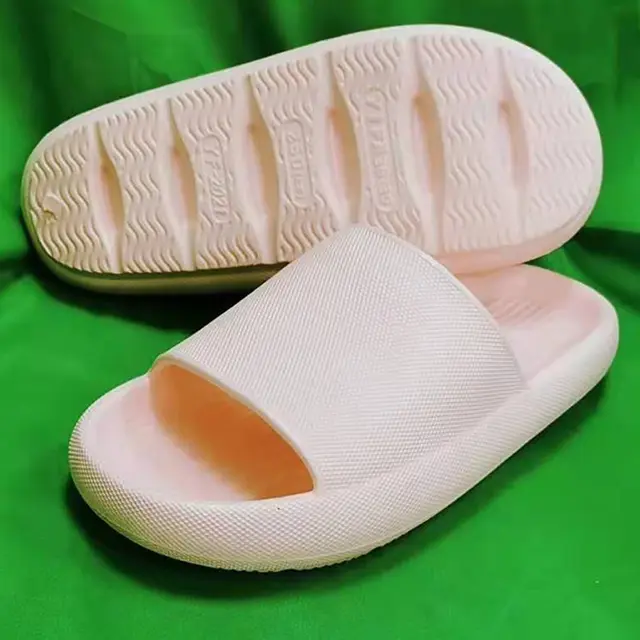

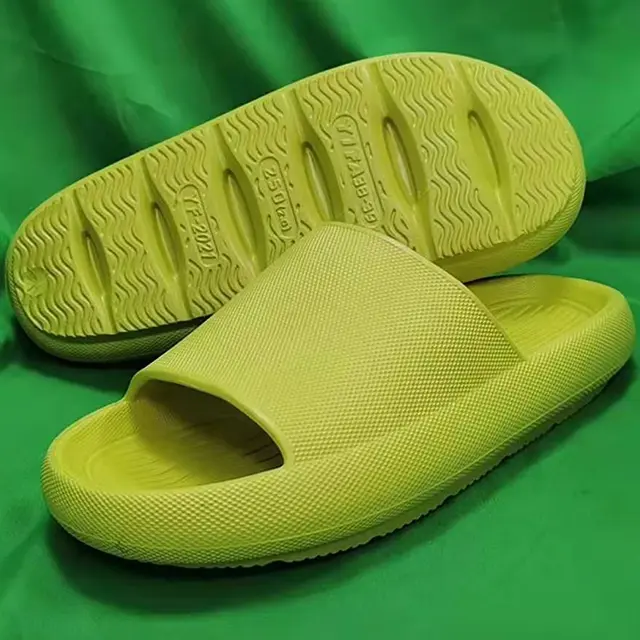

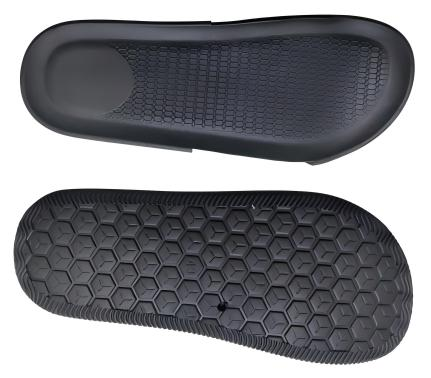

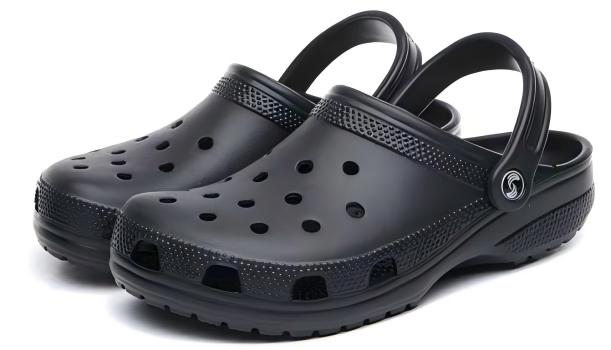

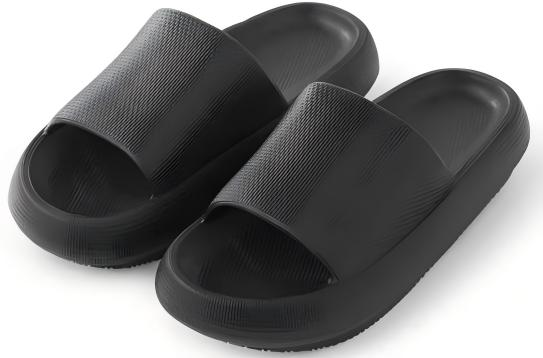

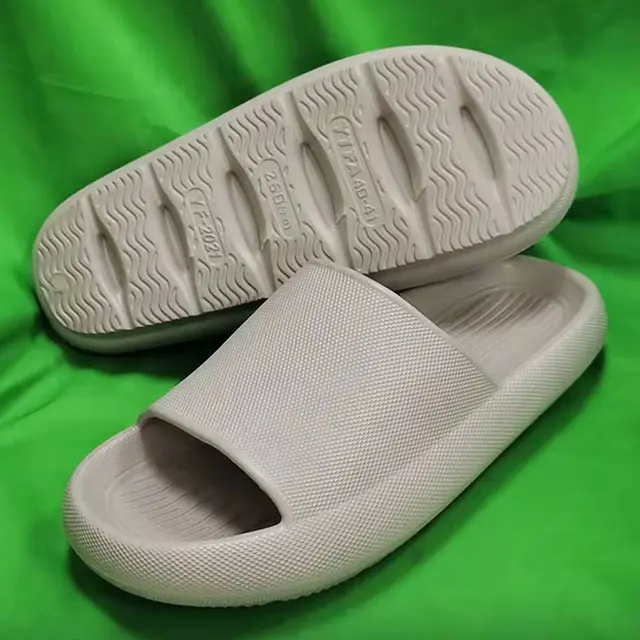

What shoes will be made and capacity details one hour for different station machine
| Capacity |  |
 |
 |
| 1 station | 96 pairs | 56 pairs | 40 pairs |
CORE ADVANTAGES
- Lower investment and smaller production.
- Suitable for small factories or domestic workshop-style factories, cottage industry.
- Big size EVA shoes moulding which can be designed 1 mould 4 pairs or 8 pairs.

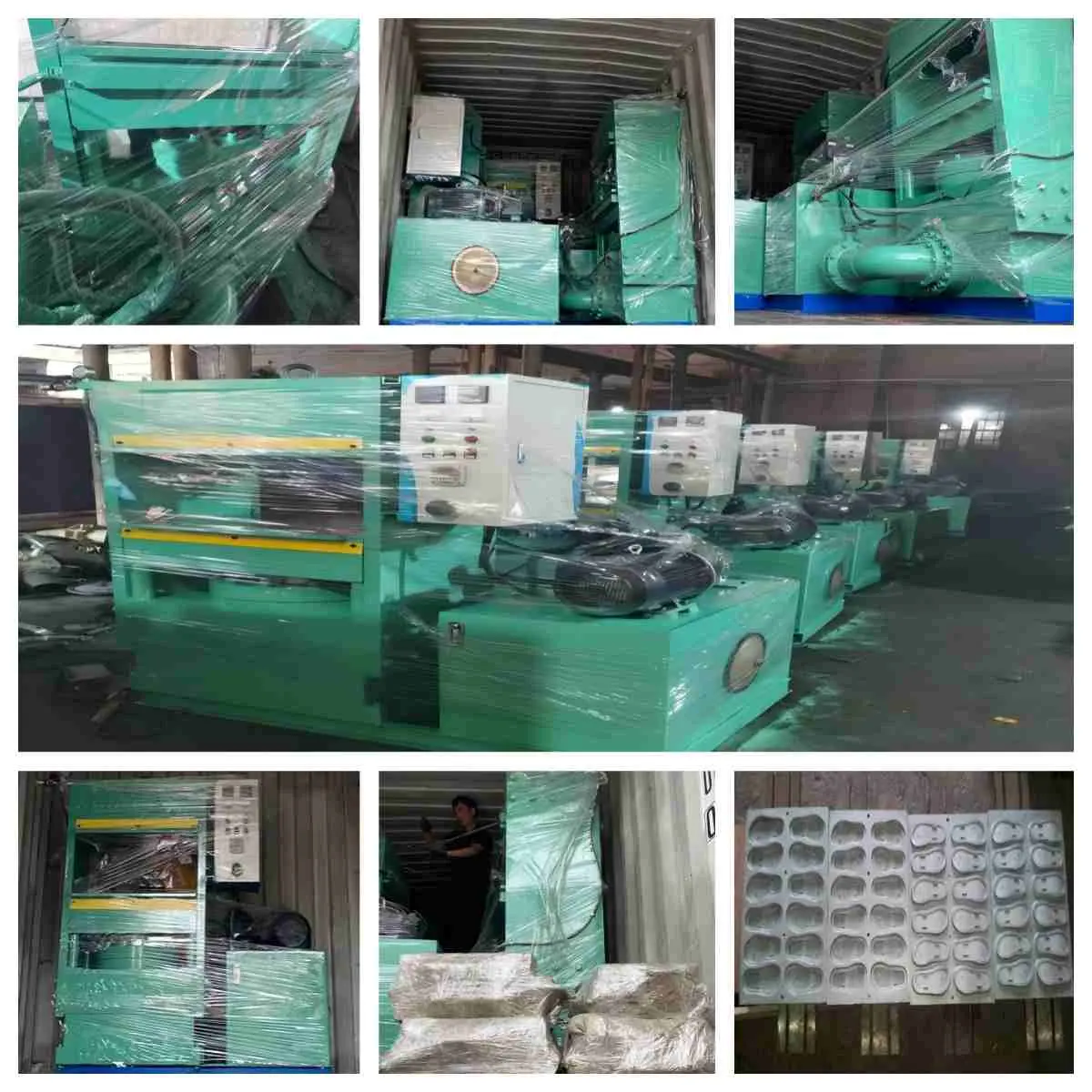

FACTORY VIEW

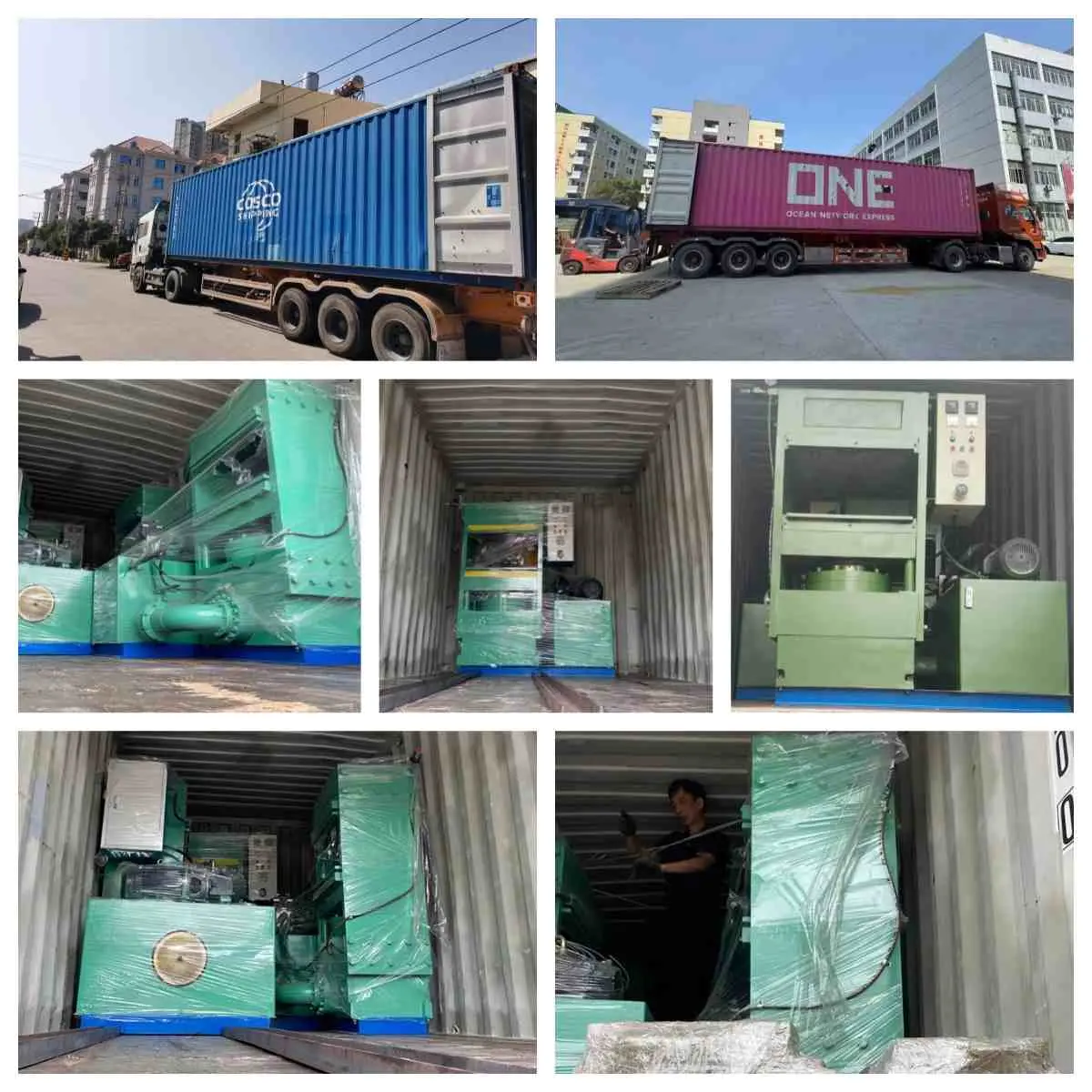

SHIPPING
SOLUTIONS & FAQ
Q: Why is this machine popular among new footwear manufacturers?
A: Its compact design, low investment cost, and simple operation make it an ideal choice for startups.
Q: How is EVA foaming production different from EVA injection molding?
A: The EVA material is placed directly into the mold and formed through heating and pressing rather than injection.
Q: Can an EVA slipper making machine produce different slipper sizes?
A: Yes. Different styles and sizes can be produced simply by changing the molds.
Q: What is the advantage of the hot-press foaming process?
A: The hot-press process provides stable shaping performance and is suitable for a wide range of EVA footwear products.
Q: How many molds can work at the same time?
A: One machine can run two molds simultaneously, and each mold can produce multiple pairs in one cycle.
Q: Is this machine suitable for small factory spaces?
A: Yes. Its compact footprint of only 1.8 × 1.1 meters helps save valuable workshop space.
Q: What makes this machine a good choice for overseas buyers?
A: 20GP container can load up to 6 machines, helping reduce shipping costs and improve investment efficiency.
