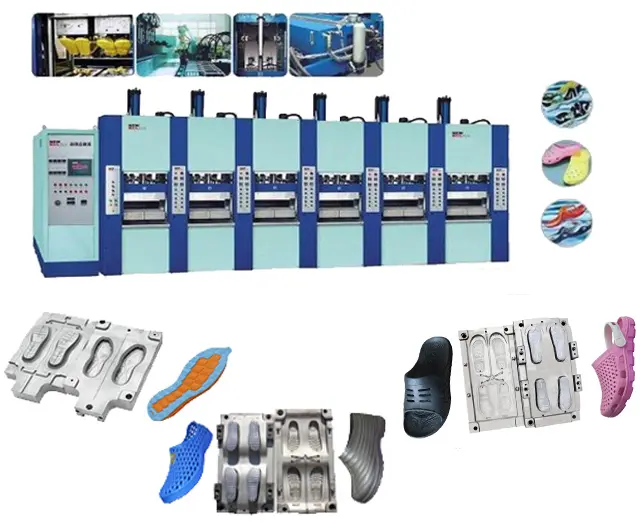

Two station EVA shoes injection machine
PRODUCT DETAIL
The EVA injection shoe machine is a highly efficient and advanced equipment used in the manufacturing process of EVA shoes. This machine utilizes air pressure to foam and shape the molten EVA material into various shoe designs, ensuring precision and consistency in every pair produced.
With its automated features, this machine offers increased productivity and reduces labor costs. It can handle large volumes of production with ease, making it ideal for footwear manufacturers looking to meet high demand.
The EVA injection shoe machine operates with precision control over temperature, pressure, and timing, resulting in superior quality shoes that are durable and comfortable to wear. Its versatility allows for the creation of different styles .
Furthermore, this machine incorporates safety measures to ensure operator protection during operation. It is designed with user-friendly interfaces that make it easy for operators to monitor and adjust settings as needed.
In addition to its efficiency in producing high-quality shoes at a faster rate than traditional methods, the EVA injection shoe machine also contributes towards environmental sustainability. By utilizing EVA materials efficiently without excessive waste or emissions during production processes.
Overall, the EVA injection shoe machine plays a crucial role in revolutionizing the footwear industry by providing manufacturers with an innovative solution that enhances productivity while maintaining product quality standards.
TECHNICAL SPECIFICATIONS
| 1 | Design speed | 12-80 pairs / hour (2 station size) |
| 2 | Power supply | 380V ±5%, 50Hz (3 phase, 5 lines) |
| 3 | Installation | 200KW (excluding air compressor, glue machine) |
| 4 | Power used | 150KW |
| 5 | Electric wire | 3×120mm² + 1×50mm² + 1×50mm² |
| 6 | Air compressor | 0.6-0.8 Mpa |
| 7 | Product weight tolerance | ±3% |
| 8 | Qualified rate | ≥97% (excluding raw material and mould) |
| 9 | Efficiency | ≥95% |
| 10 | Machine sizes (L*W*H) | 4.4m × 4.5m × 3m |
| 11 | Working size | 20m × 10m × 6m |
| 12 | Machine weight | 9 Tons |
| 13 | Machine color | Blue (Can be designed as customer's demand) |
| 14 | Container | 1 * 40HQ |
| 15 | Machine direction | Face machine from left to right |
Specification for 2/4/6/8 station machine
| Item | Unit | 2station | 4station | 6station | 8station |
| Raw material | Tons | EVA | EVA | EVA | EVA |
| station number | Pcs | 2 | 4 | 6 | 8 |
| Clamping Force | ton | 180 | 180 | 180 | 180 |
| Mold Plate Size | mm | (290*550)*2 | (290*550)*2 | (290*550)*2 | (290*550)*2 |
| Mould height | mm | 100-230 | 100-230 | 100-230 | 100-230 |
| Mold-opening Stroke | mm | 350 | 350 | 350 | 350 |
| Injector | 1 | 2 | 2 | 2 | |
| Diameter of Screw | mm | Φ65 | Φ65 | Φ65 | Φ65 |
| Injection Cap(Max) | cm³ | 920 | 920 | 920 | 920 |
| Injection Pressure | kg/cm² | 0-130 | 0-130 | 0-130 | 0-130 |
| Injection Speed | cm/sec | 0-10 | 0-10 | 0-10 | 0-10 |
| Rotating Speed of Screw | r.p.m | 0-190 | 0-190 | 0-190 | 0-190 |
| Temperature Control | section | 4 | 4 | 4 | 4 |
| Electricity Consumption | Pairs/24 hours | 2200 | 4500 | 6800 | 9200 |
| (EVA slipper) | |||||
| Heater Barrel | kw | 9.8*1 | 9.8*2 | 9.8*2 | 9.8*2 |
| Heating Plate | kw | 25.6 | 51.2 | 76.8 | 102.4 |
| Hydraulic System | kw | 22 | 51.9 | 51.9 | 51.9 |
| Vacuum Pump | hp | 1.5 | 1.5 | 1.5 | 1.5 |
| Cooling Fan of Barrel | hp | 1 | 1 | 1 | 1 |
| Total Electricity | kw | 57.4 | 122.7 | 148.3 | 155.8 |
| Oil Tank Size | L | 600 | 800 | 1000 | 1000 |
| Machine Weight | kg | 9000 | 18000 | 26000 | 33000 |
| Machine Dimension | mm | 4400*4500*3000 | 6200*4500*3000 | 8000*4500*3000 | 9800*4500*3000 |

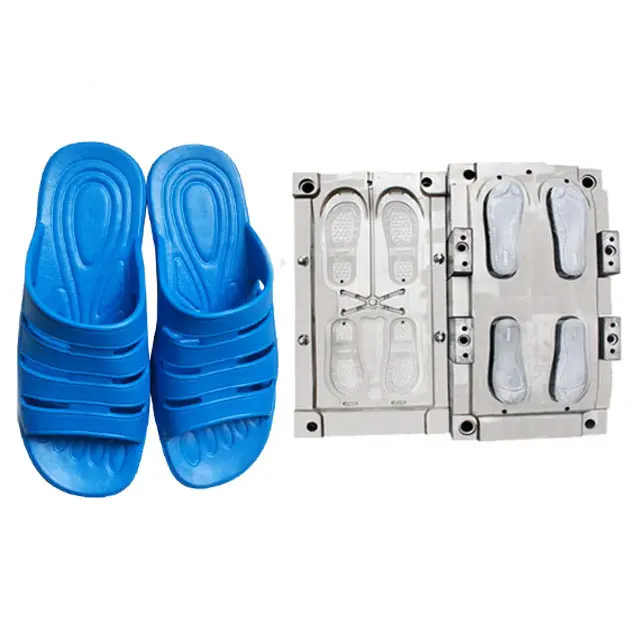

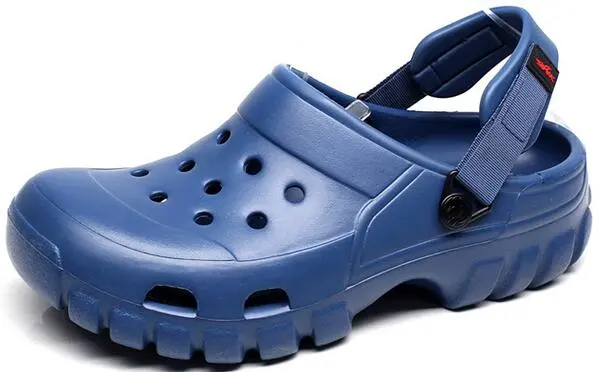

What shoes can be made and capacity details one hour for different station machine
| Capacity |  |
 |
 |
 |
 |
 |
| 2 station | 12 pairs | 48 pairs | 80 pairs | 48 pairs | 60 pairs | 32 pairs |
| 4 station | 24 pairs | 96 pairs | 160 pairs | 96 pairs | 120 pairs | 64 pairs |
| 6 station | 36 pairs | 144 pairs | 240 pairs | 144 pairs | 180 pairs | 96 pairs |
| 8 station | 48 pairs | 192 pairs | 320 pairs | 192 pairs | 240 pairs | 128 pairs |
CORE ADVANTAGES
Advanced Injection Molding Technology for Superior Footwear Quality
Our shoemaking machines are equipped with high-precision injection molding systems and intelligent process control technology, ensuring accurate material distribution and consistent molding performance. This enables us to produce comfortable, durable, and flexible shoes. Every pair of shoes is manufactured to rigorous, reliable quality standards, minimizing defects and maximizing customer satisfaction.
Intelligent Automation for Increased Production Efficiency
Our machines are designed specifically for the modern footwear industry, integrating advanced PLC control systems, touchscreen operation, and automated production processes. Real-time monitoring and precise control ensure stable and continuous machine operation while reducing reliance on manual labor. This results in faster production cycles, higher output, and more efficient overall production.
Flexible and Cost-Effective Manufacturing Solutions
Our equipment is designed to maximize material utilization and minimize energy consumption. With a quick mold change system and flexible production configurations, manufacturers can quickly switch between different shoe styles, sizes, and product categories. This combination of efficiency, flexibility, and low operating costs helps factories respond quickly to market demands while maintaining strong profitability.

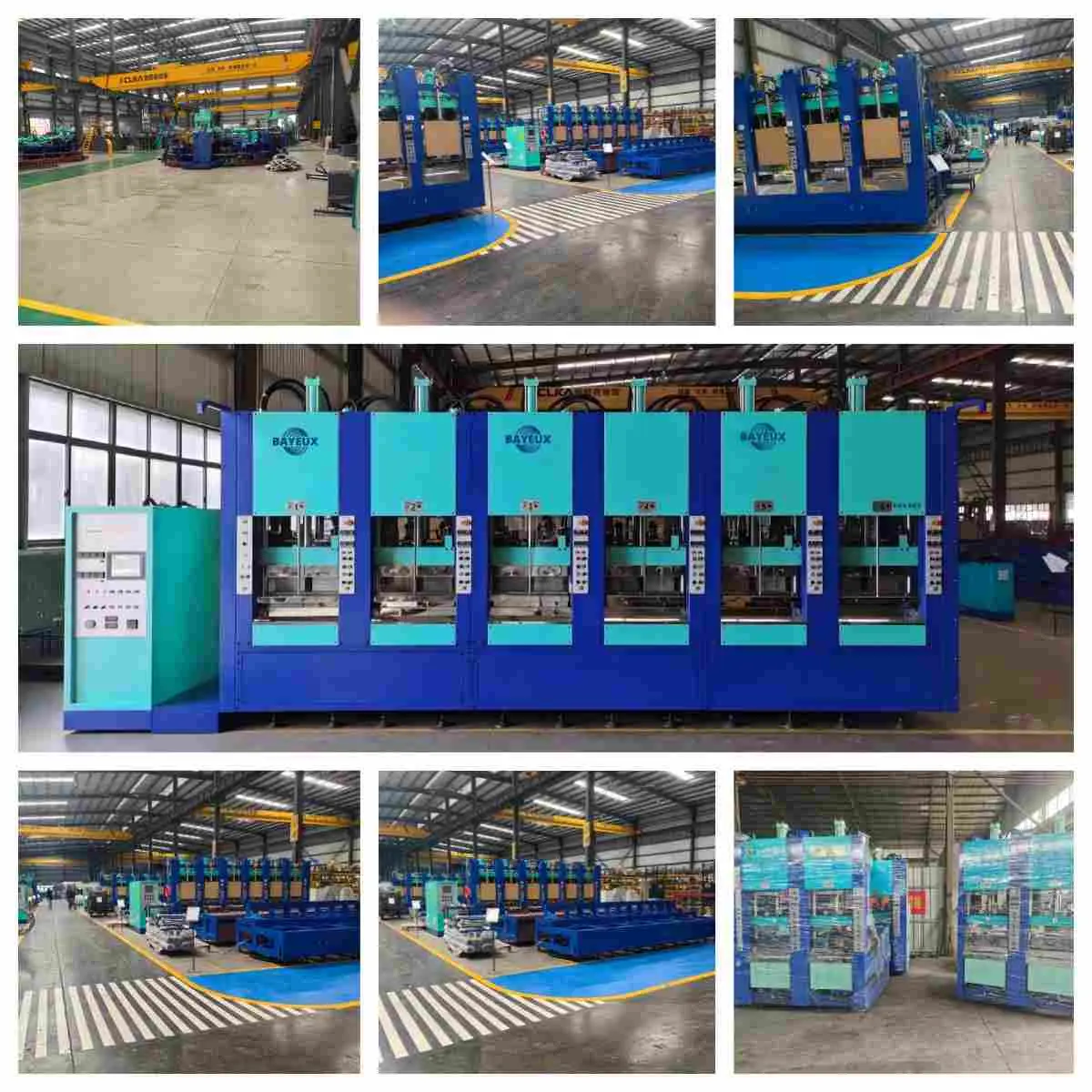

FACTORY VIEW

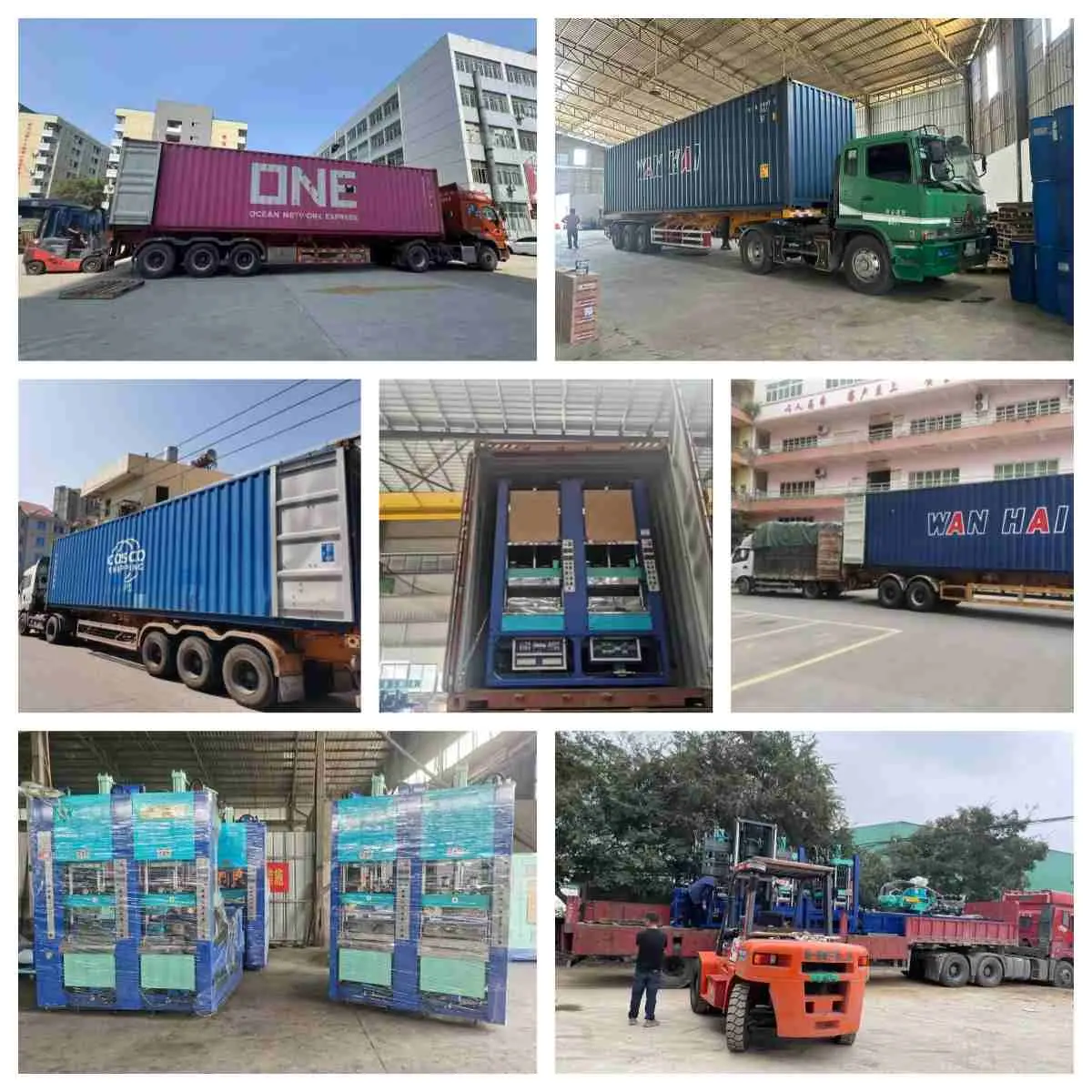

SHIPPING
SOLUTIONS & FAQ
Q: What delivery time of this machine?
Q: This machine is suitable for what kind of products?
Q: How fast can this machine produce shoes?
Q: How much space should I prepare for installation?
Q: Is this machine difficult to operate for new workers?
Q: What material is used in the production process?
A: The machine processes EVA raw material, which is heated, foamed, and injected into molds to form lightweight and durable shoe products.
